Hands-on Activity Designing Prototypes to Save Coral Reefs

Learning Objectives

After this activity, students should be able to:

• Define what anthropogenic effects are.
• Communicate the cause of mass coral die-off.
• Explain the major impacts of coral die-off.
• Explain the importance of coral reefs.
• Design, evaluate, or refine a solution (technological or otherwise) to coral loss.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

State Standards

Materials List

Each group needs:

• laptop computer (1 per student is preferred but one per group is acceptable)
• Grading Rubric
• Research Materials Handout (includes information on coral bleaching, pollution, marine debris, tourism)
• Define the Problem and Brainstorm Solutions Worksheet
• Prototype #1 Sketch Worksheet
• Prototype Reflection Worksheet
• End Prototype Worksheet

For the entire class to share:

• at least one tank or large plastic container full of saltwater to test prototypes (if saltwater is not available, freshwater can be used, but make sure to discuss the difference between saltwater and freshwater with students)
• materials to build prototypes, such as: (list is not exclusive; you can get more items or other items as you see fit)
• cardboard (boxes or cartons, free if recycled)
• gallon plastic zipper storage bags (e.g., available at Walmart)
• plastic wrap (e.g., available at Amazon)
• wooden skewers (e.g., available at Amazon)
• recycled plastic bottles (free if you save them up)
• straws (e.g., available at Amazon)
• super glue (e.g., available at Amazon)
• aluminum foil
• cotton balls
• scissors

Worksheets and Attachments

Pre-Req Knowledge

Students must be familiar with researching answers to specific questions using reliable sources. Students must be familiar with the basic location of coral reefs (tropical, shallow waters), and have a basic understanding of what coral reefs are.

Introduction/Motivation

Today we’re going to begin by talking about coral reefs and why they are so important to our planet, and the impacts that human activities have on them. Then we’re going to work in teams to use the engineering design process to build devices that can help coral reefs survive.

(Optional: Use Save Coral Reefs Presentation slides 2-4 to guide students through the Introduction and Motivation.

Watch the following video with your students to introduce or refresh their memory on what a coral reef is.

https://www.youtube.com/watch?v=ZiULxLLP32s (0:00 to 1:21)

Then have students brainstorm, “Why are coral reefs important?” Keep track of their answers on a whiteboard/chalkboard/chart where they can see it. Then, watch the following video.

https://www.youtube.com/watch?v=ZiULxLLP32s (1:22 – end)

Discuss the brainstormed list and the video to come to a class consensus on the importance of coral reefs (the answer includes environment supporting ocean biodiversity, provide food, tourism location, coastal protection).

Then discuss what all the ways coral reefs are being killed have in common (the answer is human activity via contribution to global warming, marine debris, pollution, and tourism).)

Procedure

Background

Coral reefs are the most biologically diverse ecosystems on our planet. They are located along the coast in shallow, tropical water. Coral reefs are built by different species of hard corals and soft corals, which create the foundation for coral communities to grow on and live in. These ecosystems are a crucial resource for many countries around the world for food, tourism, and coastline protection. Coral reefs are estimated to generate roughly $375 billion a year in revenue. Given their importance, it is critical for us to protect coral reefs, but as a species we haven’t been doing a very good job of that. Everyone can help contribute to the survival of coral reefs, from small ways such as wearing coral-safe sunscreen in the water, to larger ways such as declaring areas with coral reefs as marine preservation sites. This project will get students to think about the importance of coral reefs and how people like them are able to help create solutions to a global crisis.

Coral reefs are essential habitats that play a large role in tourism, food supply, and coastal protection for countries all over the world. These habitats contain some of the highest biodiversity on our planet, and they need to be protected. Because of global warming, sea surface temperatures are rising; these rising temperatures lead to coral bleaching, which is when the microscopic zooxanthellae that live in corals leave the corals, causing the coral to become white (hence the term ‘bleaching’). Corals that bleach for too long will die, causing macroalgal species to take over reefs, changing the dynamics of the ecosystem. Other impacts to coral reefs include marine debris, pollution, and tourism. Marine debris causes physical damage to corals when it gets caught on them or over them, causing corals to be blocked from the sun or creating lesions that can make them susceptible to disease. Pollution is dangerous for corals because it causes unhealthy water conditions, leading to disease or death in mass quantities. Additionally, tourism, while lucrative for countries, can be dangerous to coral colonies; people touch corals and wear sunscreen that can leach poisonous materials onto reefs, causing them to be more susceptible to disease and death.

Before the Activity

• Gather materials. As appropriate, start collecting cardboard boxes and plastic bottles a few weeks ahead of time, and/or ask students to bring in empty, clean recyclables.
• Make copies of handouts for students: Grading Rubric, Research Materials, Define the Problem and Brainstorm Solutions Worksheet, Prototype #1 Sketch Worksheet, Prototype Reflection Worksheet, End Prototype Worksheet.
• Assign groups as necessary.

With the Students

Class 1 (50 min)

1. Divide students into groups of two to four students each and assign them a coral reef health issue to tackle (coral bleaching, marine debris, pollution, or tourism). (5 minutes)

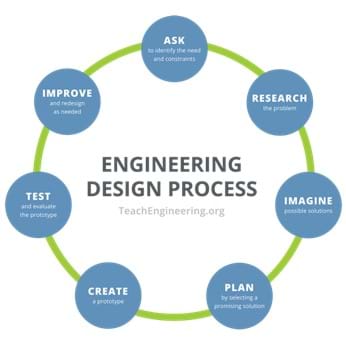

2. Explain the engineering design process to students (this is included in Save Coral Reefs Presentation Slides 5-6). (10 minutes)
3. Work through an example of the engineering design process with your students so they get a better understanding of the process, and what is expected of them (see Save Coral Reefs Presentation Slides 7-13). Distribute copies of the Grading Rubric. (20 minutes)
4. Start working through the engineering design process with your students, beginning with ‘Ask’. Have the class as a whole brainstorm, “Can we help coral reefs? And why should we help coral reefs?” (You want to get them to the idea that humans should protect coral reefs because we are responsible for their rapid decline.) (5 minutes)
5. Explain to your students that they will be building a device that will help coral reefs survive. Each group will be tackling the issue using a different human impact as their guide (coral bleaching, marine debris, pollution, or tourism). It will be tested to ensure that it can be functional in water, that it is designed to help lessen the effect of their human impact, and that it is made using everyday items. Then as a class discuss the constraints of the project; as needed, explain what a constraint is, and tell your students that they need to be realistic about their design because they will have to build it and test it in water. This means they can’t design an engine, or something that costs $5,000 dollars. Brainstorm what else this means they cannot create; other examples include recreating expensive technology, using expensive technology to build their prototype, building something larger than the container of water the class has access to, or anything too heavy that they cannot move it themselves. (see Save Coral Reefs Presentation Slides 14-16). (5 - 10 minutes)

Class 2 (50 min)

1. Have students start the ‘Research’ phase next; each group will get the Research Materials for their human impact. They can use the sources provided, and others as they see fit. Students will research and narrow down a specific problem to try to solve. It has to be something they can build a model to solve. Students will create a specific problem statement that they will submit to the teacher for approval. Students will start filling out the ‘define the problem’ section of the Define the Problem and Brainstorm Solutions Worksheet. The main idea here is that you approve of the issue they are tackling, and you know it is something that they will build a prototype to solve (see Save Coral Reefs Presentation Slides 17). (25 minutes)
2. Once students have completed their research, lead them into the ‘Imagine’ phase of the engineering process. Give students examples of some brainstorming methods (see the Brainstorming Methods section of Save Coral Reefs Presentation Slide 18) and, if necessary, run them through a practice brainstorming activity as a class (also found in Brainstorming Methods, Save Coral Reefs Presentation Slides 19-20). Then, have students brainstorm ideas for their device on the second half of the Define the Problem and Brainstorm Solutions Worksheet. (25 minutes)

Class 3 (50 min)

1. Once students have a good understanding of the problem they want to solve and have brainstormed ideas, have them create a sketch of their prototype, labeling each part of it with the material it is made from. Have them turn in their sketch and a summary of how they envision their prototype working using the Prototype #1 Sketch Worksheet (see Save Coral Reefs Presentation Slides 21-22).

Class 4 (50 min)

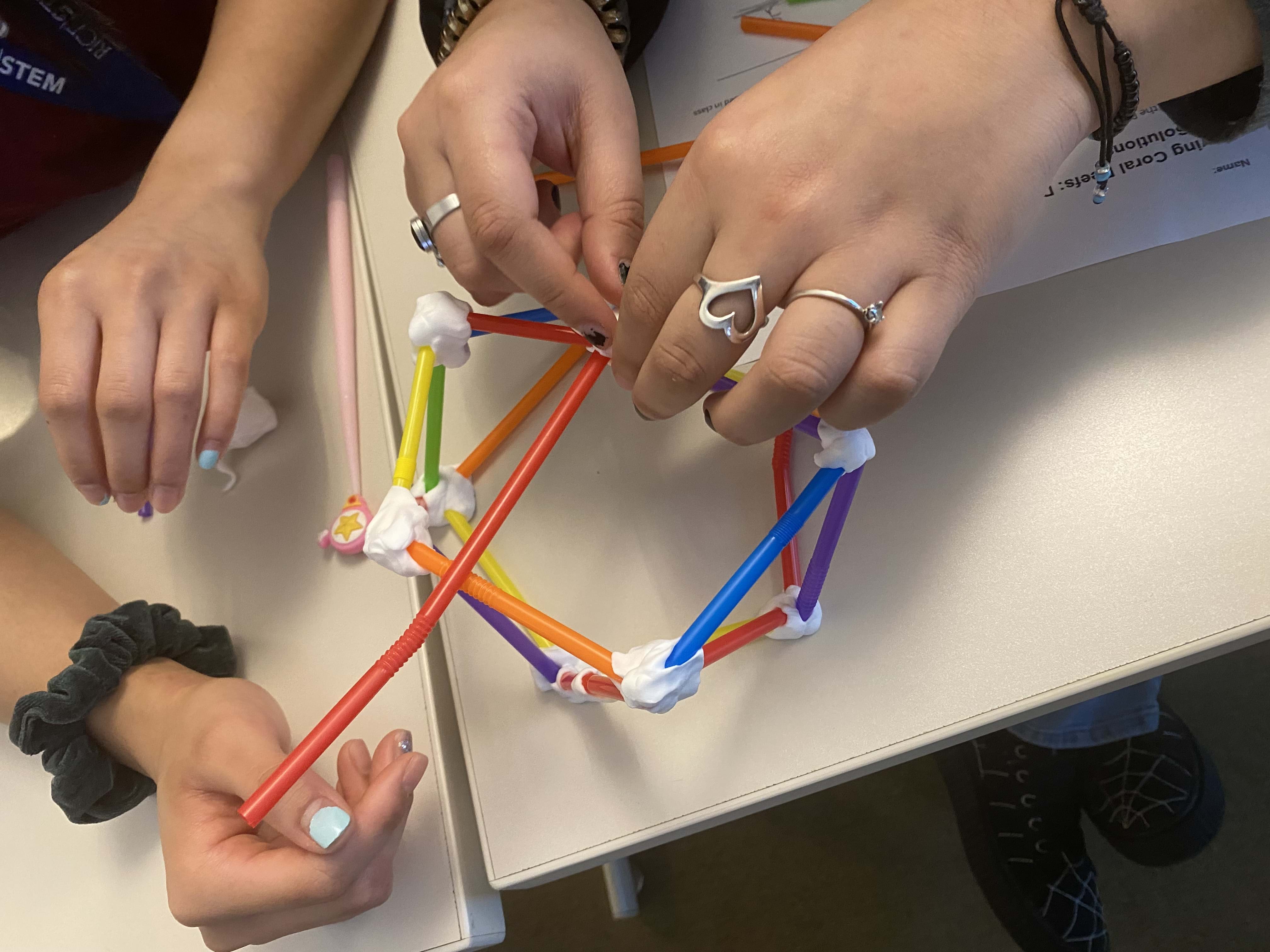

1. Students will now ‘Create’ their prototypes. Provide them with the materials list for the entire class, as well as anything you added that you thought might be helpful, and let them create their first prototype (see Save Coral Reefs Presentation Slide 23).



Class(es) 5-6 (one or two 50-min classes, depending on whether you want students to adjust their prototype or just reflect on it)

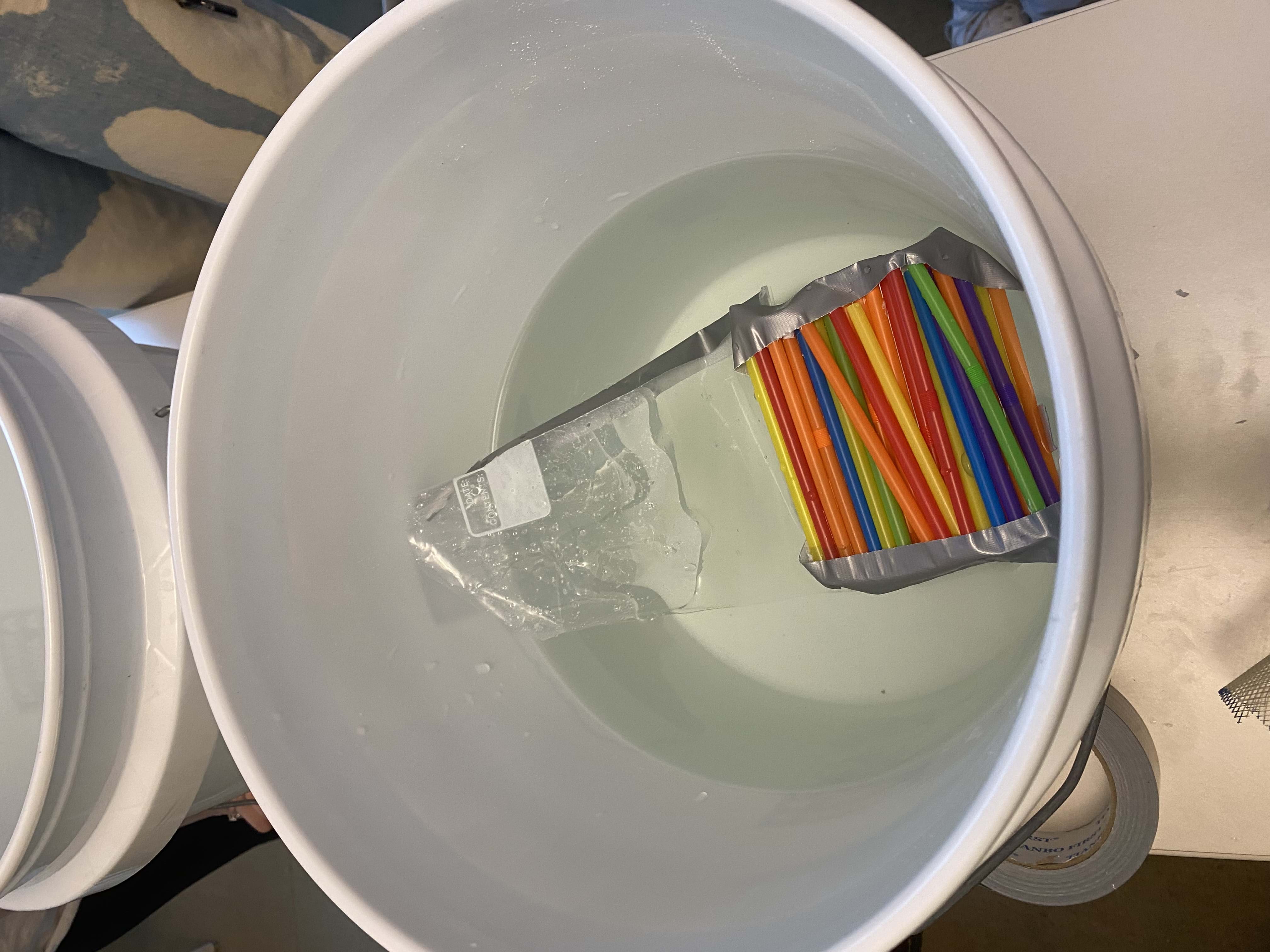

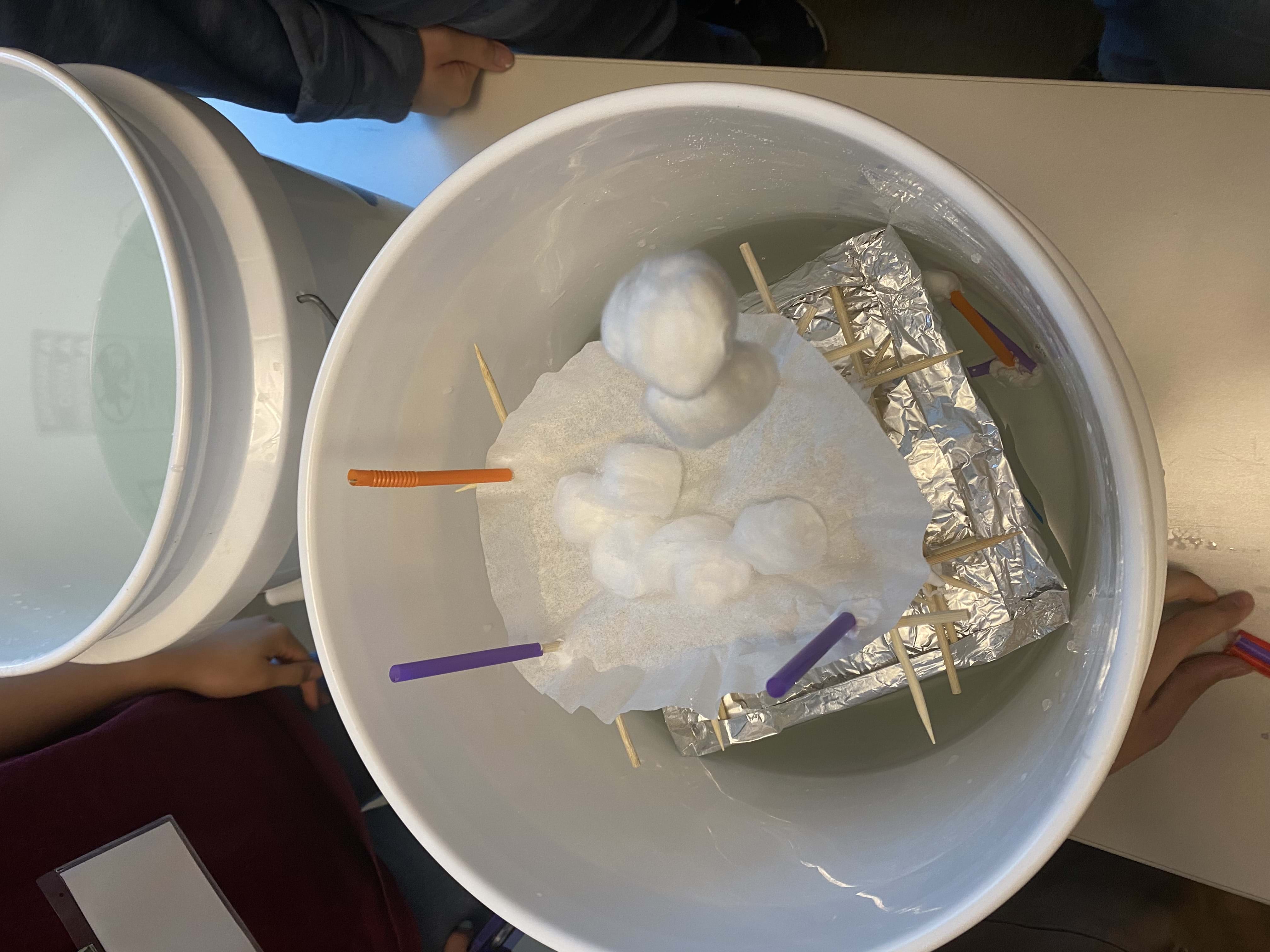

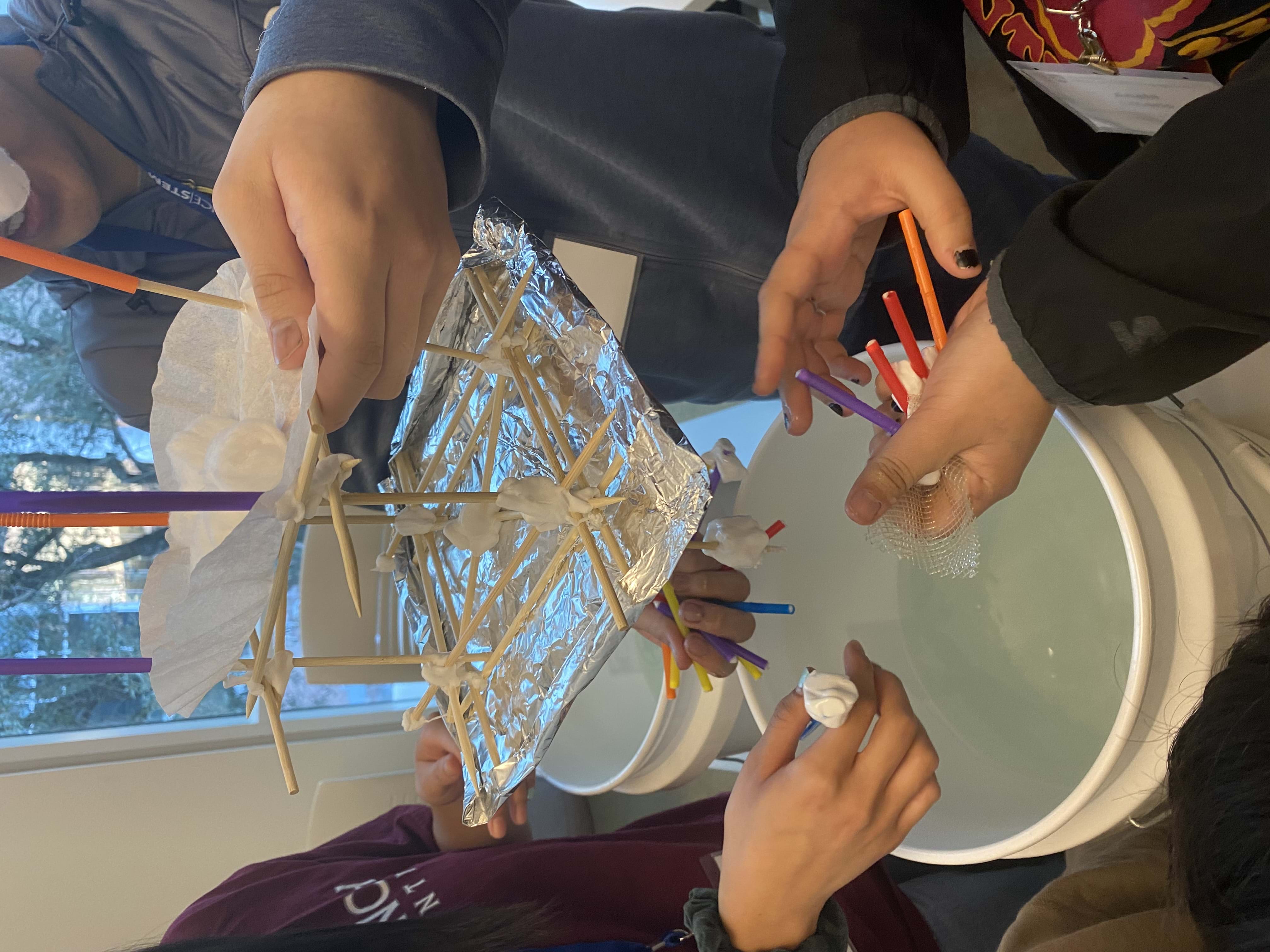

1. Once groups have their first prototype, you can now ‘Test’ them. Fill a 10-gallon (or larger) container with water (saltwater if you can) and have students place their prototype in the water and evaluate their device on how well it holds up being in the water; if time allows, leave it overnight (see Save Coral Reefs Presentation Slide 24).



2. If students' devices don’t withstand being in the water for prolonged periods of time, have them reflect on what worked and what didn’t using the Prototype Reflection Worksheet and then go back to their ‘Imagine’ or ‘Plan’ step to make adjustments to their prototype (see Save Coral Reefs Presentation Slide 25).
3. Repeat the process of prototype testing, reflection, and improvement until either (a) they have a successful prototype, or (b) you no longer wish to or have time to test their prototypes (see Save Coral Reefs Presentation Slide 26).
4. Once prototype testing is finished, have students complete the End Prototype Worksheet, where they draw their final design and further reflect on their device (see Save Coral Reefs Presentation Slide 27).

Vocabulary/Definitions

Anthropogenic: Having its origin in the influence of human activity on nature.

Coral: Any of many species of marine invertebrates in the class Anthozoa, most of which build hard calcium carbonate skeletons and form colonies, or a colony belonging to one of those species.

Coral bleaching: The loss of color in a coral reef due to the loss of symbiotic algae as a result of stress.

Coral reef: A reef formed by compacted coral skeletons.

Assessment

Pre-Activity Assessment

Quick Poll and Discussion: Before you begin the activity, ask students to raise their hand if they think coral reefs are an essential ecosystem. Then, discuss why they do/do not think it is an essential ecosystem. Have someone record answers in a table or list the main points everyone comes up with during the discussion.

Brainstorming: Have students brainstorm in groups or as a class about all the ways humans impact coral reefs.

Activity Embedded (Formative) Assessment

Scheduled Check-Ins: During the project, have scheduled check-ins with your students at the following stages of the project: (1) Researching ‒ ask students how their human activity impacts coral reefs, (2) Imagine/Plan ‒ engage with students in brainstorming ideas for their solution, (3) Create and Test ‒ have students give you an ‘elevator pitch’ of their prototype and turn in a written review of how their prototype held up (or didn’t) under testing, and (4) Improve ‒ if students have time to improve on their design, have them explain why they need to improve their design.

Post-Activity (Summative) Assessment

Grading Rubric: Use the provided Grading Rubric to assess their prototype and overall engineering design process.

Peer Evaluation: Have students fill out a Peer Evaluation Form to assess each other’s participation in the group work  (See Save Coral Reefs Presentation Slide 28).

Making Sense Assessment: Have students reflect on the science concepts they explored and/or the science and engineering skills they used by completing the Making Sense Assessment.

Investigating Questions

Q: How have humans impacted coral reefs? A: Pollution (both air and water), tourism, runoff, greenhouse gases causing global warming, direct contact, boating, dredging, etc. (There are more possible answers; these are just a few examples).

Q: What are ways that humans can help coral reefs in their everyday lives? A: Wear coral-safe sunscreen in the ocean, contribute less to impacts of global warming (e.g., carpool, eat less meat, etc.), create laws and regulations to protect coral reefs (e.g., marine sanctuaries), etc. (There are more possible answers; these are just a few examples.)

Q: How can scientists and engineers help save coral reefs? A: Building prototypes to lessen anthropogenic impacts on coral reefs, studying corals, growing corals that are more tolerant to warming temperatures, etc. (There are more possible answers; these are just a few examples.)

Safety Issues

Remind students that when building their models they should be careful with scissors, glue, and other materials. If they hurt themselves, they need to report the injury to the teacher immediately.

Troubleshooting Tips

Some students may struggle with brainstorming different categories for their prototype. If so, encourage them to research more or provide extra support, depending on their grade level and understanding of scientific and engineering practices. You can suggest brainstorming categories such as waterproofing, power, size, and more, depending on the main purpose of the filter and the issue the student group chose.

Activity Extensions

The activity can be extended by allowing students to continue to recreate prototypes or by challenging them with recreating their prototype with different objects or fewer objects. Another activity extension would be having students switch prototypes with another group and then improve that group's prototypes.

To add a real-life component, you can have students research and design their ideas using real-world technology and have them price out what it would take to build an actual prototype. This can be presented in a number of ways, including Presentation presentations, posters, or even writing a fake grant proposal.

Activity Scaling

For lower grade levels, you can give them an already created prototype and have them work to make it better. They can either try to build a better prototype or they can just design a better prototype and justify their changes/additions to the prototype with reasoning and research. You can also use this strategy if you don’t have time to do the entire engineering design process of this activity.
