Lesson GIS, Mathematics and Engineering Integration

Quick Look

Grade Level: 7 (6-8)

Time Required: 1 hour

Lesson Dependency: None

Subject Areas: Earth and Space, Geometry, Measurement, Science and Technology

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
MS-ESS2-2

This lesson requires the resource(s):

A graphic in map form shows the amount of energy the U.S. receives from the sun on average. Higher amounts of energy are displayed in red and generally include the south and west while lower energy areas are displayed in yellows and greens and tend to be in the north and east. The image was formed using GIS technology.
A map created with GIS technology shows the amount of energy that different parts on the U.S. receive from the sun. Engineers create and use maps like this to identify the best locations to place solar cell arrays for electricity generation.
copyright
Copyright © 2008 National Renewable Energy Laboratory, U.S. Department of Energy, public domain https://www.eia.gov/energyexplained/index.php?page=solar_where

Summary

The concept of geocaching is introduced as a way for students to explore using a global positioning system (GPS) device and basic geographic information (GIS) skills. Students familiarize themselves with GPS, GIS, and geocaching as well as the concepts of latitude and longitude. They develop the skills and concepts needed to complete the associated activity while considering how these technologies relate to engineering. Students discuss images associated with GPS, watch a video on how GPS is used, and review a slide show of GIS basics. They estimate their location using latitude and longitude on a world map and watch a video that introduces the geocaching phenomenon. Finally, students practice using a GPS device to gain an understanding of the technology and how location and direction features work while sending and receiving data to a GIS such as Google Earth.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

Civil, petroleum and environmental engineers, and many others, use GPS and GIS to analyze data and make informed decisions. Some civil engineers use GPS and GIS in large-scale urban planning projects. Some petroleum engineers map the extent of rock outcroppings known to contain oil or gas deposits by using GPS devices to map the outcropping surface and using GIS to integrate other data into the map. Environmental engineers may use these tools to map water resources and study climate change. This lesson demonstrates another important connection between engineering and math—problem solving—as students break up larger composite shapes into smaller shapes in order to simplify their calculations.

Learning Objectives

After this lesson, and its associated activity, students should be able to:

  • Determine a latitude and longitude from a map.
  • Operate a GPS device.
  • Identify location by its latitude and longitude.
  • Create a waypoint.
  • Use compass and distance features.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

MS-ESS2-2. Construct an explanation based on evidence for how geoscience processes have changed Earth's surface at varying time and spatial scales. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This lesson focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Construct a scientific explanation based on valid and reliable evidence obtained from sources (including the students' own experiments) and the assumption that theories and laws that describe the natural world operate today as they did in the past and will continue to do so in the future.

Alignment agreement:

The planet's systems interact over scales that range from microscopic to global in size, and they operate over fractions of a second to billions of years. These interactions have shaped Earth's history and will determine its future.

Alignment agreement:

Water's movements—both on the land and underground—cause weathering and erosion, which change the land's surface features and create underground formations.

Alignment agreement:

Time, space, and energy phenomena can be observed at various scales using models to study systems that are too large or too small.

Alignment agreement:

  • Students will develop an understanding of the core concepts of technology. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of the role of society in the development and use of technology. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Technological systems can be connected to one another. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Worksheets and Attachments

Visit [www.teachengineering.org/lessons/view/uow-2262-integrating-gis-mathematics-engineering-gps] to print or download.

Pre-Req Knowledge

Familiarity with calculating the area of regular and irregular shapes, finding missing angle measurements, and complementary and supplementary angles.

Introduction/Motivation

At any given moment, thousands of satellites orbit the Earth. In fact, on any clear, cloudless night away from city lights, you may be able to look up and spot a satellite or two passing overhead!

The satellites are used for many purposes: military, data collection, communication, weather. One famous satellite is the Hubble Space Telescope—a vital research tool that does not look at the Earth, but instead scans the darkness of space to study our universe. One of the most important satellites is a group of satellites that compose a navigation system called the global positioning system, commonly known as GPS. This satellite-based system—developed by the U.S. government for military use in the 1970s, and later for civilian use in the 1980s—provides information about position and location to users around the globe, including you!

A colorful artist's rendition shows a GPS satellite in orbit. The satellite is adorned with solar panels for generating electricity and has a metallic core with various instruments surrounding the main body.
An artist’s rendering of a GPS satellite in orbit.
copyright
Copyright © 2012 U.S. Government, Wikimedia Commons (public domain) https://commons.wikimedia.org/wiki/File:GPS-IIRM.jpg

We can use GPS through GPS-enabled devices, such as car navigation systems and smartphone apps. Most commonly, apps like Google Maps or Apple Maps use GPS to help everyday users with driving directions or location finding. However, GPS has a wide range of commercial and business applications, particularly in engineering. Civil engineers use GPS to survey and plan community infrastructure projects. Aerospace engineers incorporate GPS in aircraft and rocket design to assist with navigation. Environmental engineers employ GPS to gather data on geographic locations and the wildlife contained within them.

Before we dive deeper into other applications of GPS, let’s take a look at the following questions and see if we can answer them.

What is GPS? What does it do?

  • GPS stands for global positioning system.
  • It helps you pinpoint your location, usually on a map.

What would you used GPS for?

  • GPS is used via a GPS-enabled device and a software application interface to obtain driving directions, plot a course, or find a location or waypoint on a map.

Why would engineers put GPS capability on a rocket? (Show students the rocket image below.)

  • To make sure it doesn’t land somewhere dangerous and arrives at its intended destination.

A photograph shows a blasting off rocket (equipped with a GPS satellite) as it propels through the air, trailing a stream of flame and smoke from the engines. The rocket is red on top and white on bottom with a red stripe in the middle. Overlaid text reads “IN POSITION. Air Force launches newest GPS satellite.”
A rocket launched into space with a GPS satellite in its payload.
copyright
Copyright © 2012 Robin Meredith, U.S. Air Force, 45th Space Wing Public Affairs (public domain) http://www.af.mil/News/Article-Display/Article/110340/air-force-launches-new-gps-satellite/

What kind(s) of engineers are needed to design and launch rockets?

  • So many types! For example, aerospace, mechanical, materials, chemical, computer and software engineers.

Why do you think people/engineers might want to monitor the location of animals, such as wolves? (Show the wolf image below.)

  • To monitor their migration habits, check on the health of animals released after medical treatment, and track endangered species.

A photograph shows a gray wolf (canis lupus) facing the camera and wearing a tracking collar. The wolf is on snowy ground with branches in the foreground and background. His coat is mostly gray, white and black, with a patch of red near his shoulder.
A gray wolf in the wild wearing a tracking collar.
copyright
Copyright © 2003 U.S. Fish and Wildlife Service, Wikimedia Commons (public domain) https://commons.wikimedia.org/wiki/File:Canis_lupus_with_radio_collar.jpg

Why might engineers need to know locations on earth? How about locations in space?

  • To study a given area and help humans utilize the resources
  • To collect data
  • To help improve the world
  • To navigate effectively and to avoid other space objects

(As either an introduction or lesson supplement, consider showing students one of the following TEDx Talk videos: Geographic Information Systems (GIS): Dan Scollon at TEDxRedding; from sciBRIGHT, How Does GPS Work?; or from Esri, What is GIS? Also, introduce students to the PDF titled The Fundamentals of GIS and Real-World Applications Handout and go over it throughout the lesson.)

Introducing GIS

If any of you have used a navigation app such as Google Maps, then you have used a GIS—even if you were not aware of it!

To understand GIS and GPS, we must first understand how we mark locations on the earth. People use a GPS-enabled device to identify their locations using latitude and longitude. Latitude and longitude are like the x- and y-axes on the coordinate plane. To picture this, imagine unrolling the earth's surfaace and making it flat, like a paper map. Then, overlay a grid of axes over the map (as in Figure 1). The lines that identify your location from north to south we call lattitude. The lines that represent your location from east to west we call longitude. The equator—a horizontal line that passes through South America, sub-Saharan Africa, and much of Indonesia—represents the x-axis: 0° north and south, while the prime meridian—a vertical line passing through the UK—represents the y-axis: 0° east and west.

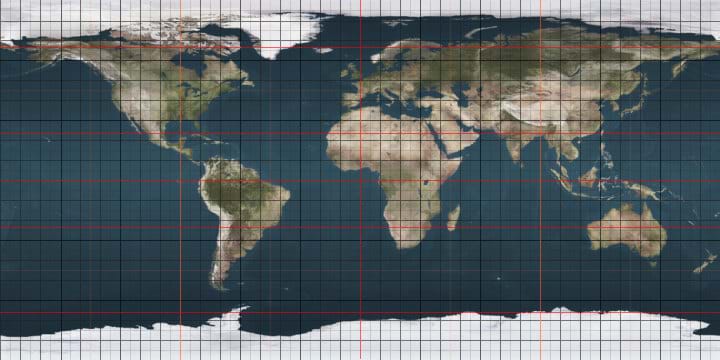

An ovular map of the world with a light brown color showing the land masses and blue for the oceans. Only continents and oceans are labeled. Parallel straight lines go east to west and curved lines run north and south, each labeled with an angle measure.
Figure 1. This world map shows lines of latitude and longitude, including red segments denoting the prime meridian (longitude 0°), equator (latitude 0°), Arctic Circle, Antarctic Circle, Tropic of Cancer, and Tropic of Capricorn.
copyright
Copyright © 2008 Dbachmann, OpenGL, Wikimedia Commons https://commons.wikimedia.org/wiki/File:Earthmap720x360_grid.jpg

One example using latitude and longitude is to determine the approximate center of the lower 48 U.S. states, located at (latitude) 39.8° north and (longitude) 98.6° west near Lebanon, KS.

Now, estimate the location of your school using this latitude and longitude map. During the next part of the lesson, we will check our estimates with real GPS coordinates. You can also estimate coordinates on a physical map in the classroom, such as one from National Geographic. Just remember, for latitude, include the degree symbol ° and “north” or “south.” For longitude, include the degree symbol ° and “east” or “west.”

Geocaching

A photograph shows a rectangular green label with black lettering and the official geocache URL (geocaching.com) and logo/emblem—a cartoon of a person tracking towards a waypoint flag, searching for a hidden treasure. Blank lines prompt the user to fill in the cache name, contact name, and contact info.
An example official geocache label that users affix to a hidden container.
copyright
Copyright © 2012 Lee Cannon, Flickr, CC BY-SA 2.0 https://www.flickr.com/photos/leecannon/6924688841 This image has not been modified in any way from its original form.

One fascinating and fun use of GPS and GIS technologies is a hobby called “geocaching.” This is a treasure-hunting activity that takes place worldwide and is open to everyone who has a sense of adventure and a GPS device or smartphone! Let's watch this short video, “What is Geocaching,” to learn more about this real-world adventuring that is happening right now all around you.

We are going to work with geocaches using our own GPS devices during a future activity, all while exploring what it would be like to be an engineer using GIS and GPS!

GPS Hardware and GIS Software

In preparation for the activity, we will practice:

  • Creating and sending a waypoint to Google Earth
  • Determining your distance from a waypoint
  • Navigating to and from the waypoint
  • Following a compass bearing

Below are screen captures from the Apple iOS software. For the purposes of this tutorial, the following instructions are for the “Free GPS” app, available on the iOS platform. Alternate GPS apps are available for Android operating systems, such as “Maverick: GPS Navigation” and “Handy GPS.” Google Earth is available for both iOS and Android from the App Store and Google Play. You can also use a desktop version of Google Earth to export or email waypoint data from a smartphone.

Example—How to Create and Send Waypoints to Google Earth:

The main screen in the Free GPS app shows your compass bearing and the distance from a chosen waypoint (as shown in Figure 2).

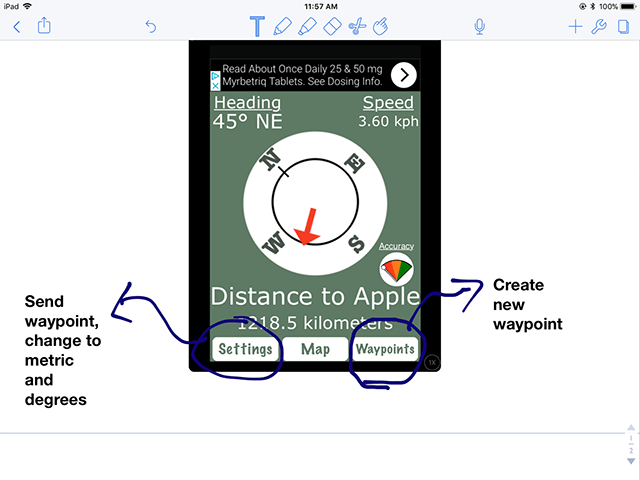

A screen capture image shows an iPad running the Free GPS app. It shows the user’s heading, speed, and distance from the selected waypoint. It also shows three buttons for input: Settings, Map, and Waypoints.
Figure 2. The home screen for the Free GPS app.
copyright
Copyright © 2018 Jake Schell, University of Wyoming

Open the Free GPS app. To create a waypoint, simply click on “Waypoints” and then “Add Waypoint.” If you are in the location you want to use, click on “Add Current Position” to use your current position for the new waypoint. This will enable you to see the latitude and longitude of your location, and change the name of the waypoint. See Figure 3.

This image is a screenshot of an iPad running the app Free GPS. It shows the waypoint’s latitude and longitude, name, and has three buttons for user input. They are “Help,” “Cancel,” and “Add”.
Figure 3. The waypoint screen for the Free GPS app.
copyright
Copyright © 2018 Jake Schell, University of Wyoming

Take note of your location in latitude and longitude of the classroom as an example. Again, for latitude remember to include the degree symbol ° and “north” or “south.” For longitude, include the degree symbol ° and “east” or “west.”

To send a waypoint from this app to Google Earth, simply go to “Settings” and click “Email Waypoints." See Figure 4.

This image is a screenshot of an iPad running the app Free GPS. It shows the settings screen, which allows users to adjust units for latitude and longitude and distance, as well as contact the application’s developer and send files to email addresses.
Figure 4. The settings screen for the Free GPS app.
copyright
Copyright © 2018 Jake Schell, University of Wyoming

Open Google Earth on a computer. Then open the file from the email on your computer and notice how it appears in Google Earth.

Next, we will walk around the room to experience how the distance and compass functions work. On the main screen, the app shows how far you have walked from the waypoint you created originally. You will use a feature like this in the activity. Be sure you hold the device flat, parallel to the ground. Notice as you move, so does the compass, showing your heading facing straight in front of the device. You will also need to use this compass bearing during the activity. Here is a helpful chart to familiarize yourself with compass headings and how they relate to north, south, east, and west (sketch this table on the classroom board).

(Once students are familiar with the app, move on to conduct the Geometry and Geocaching Using GIS and GPS activitiy.)

Lesson Background and Concepts for Teachers

Geographic information systems (GIS) integrate data from a wide variety of fields—natural sciences, social sciences, and engineering—and display data in map form. The global positioning system (GPS) is a global satellite-based navigation array that provides location and time information to GPS receivers anywhere on or near the Earth, provided the device has a line of sight to four or more GPS satellites. GIS and GPS go hand-in-hand as much of the data used in GIS is obtained with GPS coordinates to pinpoint locations based on data.

Geocaching is a hobby in which people hide items around the world and post instructions on how to find them. Then, other geocache hunters use GPS-enabled devices to find the hidden cache, or treasure. GPS devices display a user’s location on a map from which they can save their locations and upload the data to a computer. Many devices have GPS receivers embedded within them, such as smartphones as well as technology used in engineering like surveying equipment. Students take the role of a geocache hunter, using a GPS-enabled device to locate a certain point on the Earth’s surface. They use hints at each waypoint to find other locations. When mapped out on Google Earth, they can visualize the length and direction of where they traveled. Refer to the Topographic Maps and Ratios: A Study of Denali activity for students to discover how to use map scales as ratios to navigate a map.

Engineers of all types use GPS and GIS to acquire, compile, and view data so they may make informed decisions throughout their problem-solving process. This lesson introduces students to GIS and GPS through the lens of geocaching while practicing other concepts like geometry and scale. Students need to be familiar with calculating area of regular and irregular shapes, finding missing angle measures, and understanding complementary and supplementary angles. The lesson is also suitable for use in conjunction with rate and unit rate concepts.

Most free GPS apps are quite user friendly and can be used by individuals with limited knowledge of GPS and GIS. This lesson uses one example of a free GPS app available for iOS. If you decide to use another application (for example, on an Android device), you must know how to send waypoints to Google Earth via email in the form of KML files (also known as keyhole markup language—a computer text language that expresses geographic annotation and visualization). If the KML file does not load in Google Earth, click and directly drag the file into Google Earth from its folder wherever you chose to save it. To do this, release the mouse pointer over the map portion of Google Earth.

Most GPS software provides a way for users to send waypoints to Google Earth as KML files. Make sure the teachers and students understand the GPS software of the devices used in the classroom.

Before undertaking this lesson and its associated activities, it is recommended that the teacher become familiar with the technologies—both GPS and GIS (Google Earth). For more information on teacher preparation, refer to the Geometry and Geocaching Using GIS and GPS activity.

Associated Activities

  • Geometry and Geocaching Using GIS & GPS - Students use GPS devices to find and mark geocaches as well as to travel from location to location. Each geocache provides a geometry problem, and the answer indicates the direction and distance to travel to the next geocache. For this activity, students act as civil engineers who are designing new features in the area, including a pathway and a fence. Students work with unit rates to find how much material is needed and draw the area on graph paper as a scale model.
  • Topographic Maps and Ratios: A Study of Denali - Students overlay topographic maps onto Google Earth satellite imagery. By analyzing Denali, the tallest mountain in North American, they discover how to use map scales as ratios to navigate a map. Students also use rates to make sense of contour lines and elevation changes in an integrated GIS software program, Google Earth. Students problem-solve to find potential pathways up a mountain by calculating gradients.

Lesson Closure

What is GIS? What is GPS? How are they related? How does geocaching use these technologies? Why might different types of engineers want to use GIS and GPS in their jobs? When do you use GIS in your daily activities? What are latitude and longitude?

Vocabulary/Definitions

coordinate: The combination of longitude and latitude, along with elevation, make a GPS coordinate which defines a single point on the surface of the earth.

geographic information system: A way to store, edit, and manipulate data or information, usually using maps; commonly referred to as GIS.

global positioning system: A satellite based navigation system that allows users to determine their position on the earth, among other uses; commonly referred to as GPS. More broadly, GPS can refer to any device used to locate a given position.

latitude: This represents an angle north or south of the equator, but is more easily understood as the y-coordinate of a location on the surface of the earth.

longitude: This represents an angle east or west of the prime meridian, but is more easily understood as the x-coordinate of a location on the surface of the earth.

waypoint: In the case of navigation, a fixed longitudinal and latitudinal coordinate or GPS point that identify a physical point.

Assessment

Pre-Lesson Assessment

Turn and Talk: Conduct a class discussion prompted by the following questions. Students' answers and comments reveal their base understanding of the lesson topic.

  • What is GPS?
  • What is GIS?
  • Have you ever used either?
  • Can you think of any type of engineer who might use either?

Post-Introduction Assessment

Re-Visit Turn and Talk: Ask the same discussion questions again after presenting and completing the Introduction/Motivation section as a way to gauge how much information students learned.

Lesson Summary Assessment

Researching Engineers: Based on their knowledge of GPS, GIS, and geocaching, discuss as a class the types of engineers that may use these geographic information tools. Prompt students with the following career paths:

  • Civil engineer
  • Mechanical engineer
  • Energy systems engineer
  • Biomedical engineer
  • Geologic engineer
  • Another engineer type of your choice (check with teacher first)

Homework

Activity Prep: Have students prepare for the associated activity by either downloading a free GPS app and creating at least three waypoints on their way home from school (if they have access to their own smartphones). Or, create an assignment using The Fundamentals of GIS and Real-World Applications Handout such as exploring Google Earth or finding a particular set of latitudes and longitudes on a traditional 2D/paper map.

Lesson Extension Activities

Give students time to research different types of engineers. Either assign students to individually research and write about these career types, or present their findings in small groups.
