Lesson Air Under Pressure

Learning Objectives

After this lesson, students should be able to:

• Describe the effect of the sun on air masses in the Earth's atmosphere.
• Compare and contrast high- and low-pressure air systems.
• Describe how high- and low-pressure air systems are related to weather events.
• Explain that engineers design instrumentation, such as a barometer, to help analyze the Earth's weather systems.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

International Technology and Engineering Educators Association - Technology

State Standards

Introduction/Motivation

Have you ever blown up a balloon and let go of it without sealing it with a knot? What happens? That's right: it zips around in the air until the air is gone, and it is finally deflated. That occurs because there is a pressure difference between the air inside the balloon and the surrounding air. Even though we cannot always see or feel the air, it actually has a mass. It also has other physical properties, such as density and pressure. What does that mean for our atmosphere? Large bodies of air exist in our atmosphere where all the air within that region has a similar temperature, pressure and humidity. We call those bodies of air with similar characteristics air masses. Air masses change and shift all the time, but on any given day, there are many different air masses in our atmosphere, all with their own unique air pressure. Thinking back to the balloon example, we know that air pressure differences can cause air to move — similar to the balloon zipping around the room. The movement of those air masses in our atmosphere contributes to the weather we experience every day. Barometers are a common device that scientists use to measure air pressure and to predict weather patterns. Students can design their own simple barometer in the Building a Barometer activity.

We know that the sun plays a significant role in the weather we experience on Earth. But how does the sun relate to air masses? The sun heats up our atmosphere and the Earth's surface, but the heating takes place unevenly because the sun's rays hit different areas of the Earth at different angles. Variations on the Earth's surface provide even more room for uneven heating. The air above water, for example, is typically cooler than the air above land, and the air above lighter colored surfaces is typically cooler than the air above darker ones (very simply, because dark color absorb more heat). Because the sun heats pockets of air to different temperatures, the sun actually helps create the different air masses in our atmosphere.

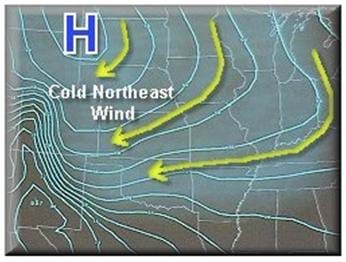

High- and low-pressure areas are affected by the interaction of air and temperature (among other things) in our atmosphere. Areas of high air pressure are often characterized by light winds and clear skies. With no clouds to reflect the sunlight, high-pressure regions also usually experience higher daytime temperatures. Low-pressure areas then, are regions where the atmospheric pressure is lower than that of the surrounding area. Low-pressure areas are associated with winds and cloudy, overcast skies. Due to the clouds, the sun's rays have a harder time penetrating low-pressure regions, usually leading to lower temperatures. Falling air pressure usually indicates that a storm of some sort is approaching. On the other hand, rising air pressure is usually an indication that the weather is clearing up.

Changes in weather happen due to many reasons, including moving air masses and air pressure, as well as humidity and temperature. All of these things work together as parts of the system of weather that affects us every day.

Lesson Background and Concepts for Teachers

Why do air masses move around? The Earth's air masses move because the changes in air temperature also mean changes in air pressure and density. As the temperature of air increases, the air expands. The same amount of air occupies more space when it heats up than when it is cold. Density of air is equal to the mass of the air divided by its volume. So in other words, when air is heated, its volume increases, but its density decreases. Things with lower density float on top of things with higher density. For example, ice cubes float in water because water is denser than the ice cubes. The same phenomenon happens in our atmosphere: warm air rises because it "floats" on top of colder air. In other words, the rule of thumb is that hot air rises and cold air sinks. This simple principle actually guides much of the weather patterns we experience on Earth.

There are four major types of air masses that influence the weather in the United States: (1) continental tropical, (2) maritime tropical, (3) continental polar and (4) maritime polar. To simply things, maritime refers to air masses that form over oceans, while continental means air masses that formed over land. The air masses that form over oceans (maritime) are more humid than continental air masses that form over dry land. Air masses that form in the tropics have low air pressure, and air masses that form closer to the poles are higher air pressure.

Let's observe and explore actual weather data! There are multiple websites with archived and current weather data, one particular site is: http://www.hpc.ncep.noaa.gov/html/sfc_archive.shtml. Going to this site and clicking on "latest image" for any of the image types will show a larger image for that method of presenting the data. Options are color and black and white images of pressures and satellite images. There is also an option on this site to cycle through images for the last 3 or 7 days. Start with images only. Open the different types and explore the images! Identify high- and low-pressure systems on the "no observations" image and compare that with the weather apparent on the IR Satellite images. Once you have an understanding of the information being presented on the images feel free to move on to cycling through multiple days of data and comparing movement of the air masses to weather events. Where does the tumultuous weather occur? High pressure masses? Low pressure masses? Between the two? If your area had a recent weather event, try to determine the movement of air masses that caused it!

Associated Activities

• Building a Barometer - Students investigate the modeling of air pressure changes through the design of a simple barometer. They observe and take measurements of the weather using their barometers and begin to describe weather as a system of components that includes air pressure.

  Watch this activity on YouTube

Lesson Closure

Today we want to remember that hot air rises and cold air sinks. The sun heats up our atmosphere and the Earth's surface, but the heating takes place unevenly because the sun's rays hit the Earth's surface at different angles. The many different angles can be influenced by the topography and variations on the Earth's surface itself. The moving air that circulates in our atmosphere is called an air mass and can involve high or low air pressure.

Also, areas of high air pressure are often characterized by light winds and clear skies. Low-pressure areas are associated with winds and cloudy, rainy skies. Usually, falling air pressure usually indicates that a storm of some sort is approaching; rising air pressure is usually an indication that the weather is going to be fair.

Engineers design the instruments — including barometers — to measure air pressure, which meteorologists use to help analyze the Earth's weather systems. Engineers are always trying to improve these instruments to make them more accurate, more efficient, or to utilize new technologies.

Vocabulary/Definitions

air mass: A large region of air that has similar temperature, pressure and humidity.

air pressure: The force caused by the weight of air pushing down on an area.

anticyclones: A name sometimes used to refer to high-pressure areas.

barometer: A tool used to measure air pressure.

continental: Refers to air masses that form over land.

cyclones: A name sometimes used to refer to low-pressure areas.

high-pressure area: Region of air where the air pressure is greater than that of the surrounding area.

low air pressure: Region of air where the air pressure is lower than that of the surrounding area.

maritime: Refers to air masses that form over oceans.

Assessment

Pre-Lesson Assessment

Discussion Questions: Ask a few questions to get students to think about the upcoming lesson. After soliciting answers, explain that these questions will be answered during the lesson.

• Why does the weather change from day to day?
• How do engineers help us make weather predictions?

Post-Introduction Assessment

Voting: Ask a true/false question and have students vote by holding thumbs up for true and thumbs down for false. Tally the votes and write the totals on the board. Give the right answers.

• True or False: Cold air rises and hot air sinks. (Answer: False; hot air rises and cold air sinks.)
• True or False: Wind and storms are caused by the movement of air masses. (Answer: True)
• True or False: The sun helps create the different air masses in our atmosphere by heating the air to different temperatures. (Answer: True)
• True or False: Areas of low air pressure are often characterized by light winds and clear skies. (Answer: False; areas of high air pressure tell us that clear skies are ahead.)
• True or False: Engineers design the weather instruments that are used in forecasting the weather on TV or radio. (Answer: True; engineers design instruments to help all meteorologists make weather forecasts.)
• True or False: It is not possible to measure the Earth's weather from space. (Answer: False; in additional to designing instruments to help make weather forecasts, engineers also design instruments to help us predict the weather from space as well as on Earth.)

Lesson Summary Assessment

Explain It: Often, engineers are asked to explain complex concepts to an audience that has little prior knowledge of the topic. Have students write short paragraphs or stories to explain air pressure to younger students. From what they learned today, have them include information on how engineers help us understand air pressure and weather.

Think about Constraints: Engineers must consider the economic, social and environmental impacts of their designs on their audiences. For weather forecasting, the audience includes all of us who listen to weather reports and forecasts. As a class, generate a list of how weather forecasts (and its accuracy) affect us socially, economically and environmentally. For example, we may decide what to wear and when to be outside by listening to a weather forecast (social); a weather forecast might help us decide what clothing to buy or what type of building material we use for a house (economic); a weather forecast could also help us learn about the amount of rain or snow available for drinking water (environmental).

Lesson Extension Activities

Air Pressure and Flight: Have students investigate and write about how engineers have used the principles of air pressure to make things fly. For example, engineers design hot air balloons using their understanding of air pressure and knowing that hot air rises, while cold air sinks. Hot air balloons function using a flame to heat the air trapped in the balloon. As the balloon air gets hotter, its density decreases, causing the balloon to float on top of colder air, rising and lifting it up and away.

Acrostic Poem: Encourage students to synthesize and evaluate their learning by having them write an acrostic poem. To do this, ask them to write the word WEATHER vertically on a piece of paper. Then, have them use each letter in the word as the first letter of a word or phrase related to weather. For example, W = Wind, E = Elevation, A = Atmosphere, T = Tornado, H = Heat, E = Evaporation, R = Rain, etc.
