Summary
Students work collaboratively to create a low-cost, easy-to-use device that helps individuals with multiple sclerosis (MS) securely hold a pencil, addressing difficulties with fine motor skills. After learning about MS and discussing how biomedical engineers develop assistive devices, students establish criteria and constraints for their designs. They brainstorm, sketch, and select materials, then build and test their prototypes within a set time. Following testing, they evaluate and improve their designs, ultimately presenting their final devices to the class.Engineering Connection
Biomedical engineers design assistive devices to improve the quality of life for people with medical conditions such as multiple sclerosis (MS). Biomedical engineers use the engineering design process—defining problems, establishing criteria and constraints, brainstorming, prototyping, testing, and refining—to create solutions that address the specific physical challenges patients face.
Learning Objectives
After this activity, students should be able to:
- Design and prototype an assistive device to help MS patients hold a pencil and write.
- Apply the engineering design process, including brainstorming, testing, and iterating their designs.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards - Science
NGSS Performance Expectation | ||
---|---|---|
MS-ETS1-2. Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8) Do you agree with this alignment? |
||
Click to view other curriculum aligned to this Performance Expectation | ||
This activity focuses on the following Three Dimensional Learning aspects of NGSS: | ||
Science & Engineering Practices | Disciplinary Core Ideas | Crosscutting Concepts |
Evaluate competing design solutions based on jointly developed and agreed-upon design criteria. Alignment agreement: | There are systematic processes for evaluating solutions with respect to how well they meet the criteria and constraints of a problem. Alignment agreement: |
NGSS Performance Expectation | ||
---|---|---|
MS-ETS1-4. Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved. (Grades 6 - 8) Do you agree with this alignment? |
||
Click to view other curriculum aligned to this Performance Expectation | ||
This activity focuses on the following Three Dimensional Learning aspects of NGSS: | ||
Science & Engineering Practices | Disciplinary Core Ideas | Crosscutting Concepts |
Develop a model to generate data to test ideas about designed systems, including those representing inputs and outputs. Alignment agreement: | Models of all kinds are important for testing solutions. Alignment agreement: The iterative process of testing the most promising solutions and modifying what is proposed on the basis of the test results leads to greater refinement and ultimately to an optimal solution.Alignment agreement: |
NGSS Performance Expectation | ||
---|---|---|
MS-LS1-8. Gather and synthesize information that sensory receptors respond to stimuli by sending messages to the brain for immediate behavior or storage as memories. (Grades 6 - 8) Do you agree with this alignment? |
||
Click to view other curriculum aligned to this Performance Expectation | ||
This activity focuses on the following Three Dimensional Learning aspects of NGSS: | ||
Science & Engineering Practices | Disciplinary Core Ideas | Crosscutting Concepts |
Gather, read, and synthesize information from multiple appropriate sources and assess the credibility, accuracy, and possible bias of each publication and methods used, and describe how they are supported or not supported by evidence. Alignment agreement: | Each sense receptor responds to different inputs (electromagnetic, mechanical, chemical), transmitting them as signals that travel along nerve cells to the brain. The signals are then processed in the brain, resulting in immediate behaviors or memories. Alignment agreement: | Cause and effect relationships may be used to predict phenomena in natural systems. Alignment agreement: |
Materials List
Suggested materials that the groups can “purchase”:
- craft sticks
- straws
- string (30 cm)
- rubber bands
- pipe cleaners
- note cards
- paper clips
- masking tape (30 cm)
- cotton balls
- playdoh
For the entire class to share:
- iPad or laptop with internet access and projector to show videos
- scissors
Worksheets and Attachments
Visit [www.teachengineering.org/activities/view/uok-2943-helping-hands-assisted-device-multiple-sclerosis-activity] to print or download.Introduction/Motivation
(Play this video: Facebook Video [shaky hand that struggles to even touch fingers together].).
Take a close look at this person's hand. What do you notice? What questions do you have? (Pause for student responses.) Have any of you ever experienced a time when your hands felt really weak or shaky? Maybe after playing sports for a long time, or when you were very tired? How did that feel? Do you think you would have been able to write with your pencil very well? (Let students offer answers.)
Now, imagine feeling like that all the time. People with a condition called multiple sclerosis, or MS, experience something similar because their nerve cells can't send signals properly.
Let’s do a quick review. What is myelin? (Answer: Myelin is a fatty substance that wraps around the axons of neurons [nerve cells] in the nervous system. Its main function is to insulate these axons, much like the plastic coating on electrical wires, allowing nerve signals to travel quickly and efficiently along the nerve cells.)
How does myelin help nerve signals travel? (Possible answers: Myelin acts like insulation around nerve fibers, helping electrical signals travel quickly and efficiently. It helps protect the nerve fibers from damage. Myelin allows for fast and precise communication between different parts of the body. It speeds up transmission.)
Today we are going to become biomedical engineers and design a device that can help someone with MS. Your challenge will be to design a device that can help someone with MS hold a pencil and write, something all of you do every day at school and have no issues. You'll get to be creative and use what you know about the nervous system, neurons, and myelin to come up with your designs.
Procedure
Background
Multiple sclerosis (MS) is a chronic disease whereby the immune system attacks the protective myelin sheath that covers nerve fibers. This leads to communication problems between the brain and the rest of the body. Over time, the disease can cause permanent damage or deterioration of the nerves. Symptoms include fatigue, difficulty walking, numbness, and problems with coordination. Understanding how nerve cells work, particularly the role of myelin in facilitating fast signal transmission, is crucial for this activity. The goal is for students to apply their knowledge of the nervous system to create an engineering solution that assists people with MS in performing a fine motor skill task such as writing.
Before the Activity
- Gather all building materials.
- Make copies of the Losing my Fine Motor Skills Article.
- Make copies of the Helping Hands Worksheet.
- Set up an iPad or laptop with internet access and projector to show videos.
During the Activity
Ask & Research (20 minutes)
- Go through Introduction and Motivation section.
- Play the following video to learn more about MS: YouTube Video (1:55 minutes).
- Have a class discussion about what happens when myelin is damaged. (Answer: When myelin is damaged, the signals slow down or get mixed up, making it hard for people to do things like write or button a shirt. MS can make everyday tasks very difficult.)
- Hand out copies of the Losing my Fine Motor Skills Article.
- Have students read the article in pairs.
- After everyone finishes reading the article, lead a class discussion and ask the following questions:
- “How has Matt’s life been affected by MS?”
- “Have you ever used or seen someone use a device to help them with a task? Maybe a grandparent using a cane, or someone using special tools in the kitchen?"
- “What do biomedical engineers do for MS patients?” (Potential answers: Biomedical engineers develop rehabilitation devices such as wearable exoskeletons, robotic braces, and smart canes, which help patients walk more easily and improve muscle strength and balance. These devices help people with MS regain independence and reduce reliance on caregivers.)
Criteria and Constraints (10 minutes)
- Divide students into groups of 2-3.
- Pass out the Helping Hands Worksheet.
- As a class, define the criteria for the device:
- It must hold a pencil securely.
- It must be easy to use (i.e., can be put on and taken off easily).
- As a class, discuss the constraints of the challenge:
- Cost – device cannot cost more than $5 worth of materials.
- Time – device must be built in 20 minutes.
- Size – device must be sized to work for middle school students to adults.
Imagine & Plan (10 minutes)
- Have students work in their groups to brainstorm and sketch their design ideas in their Helping Hands Worksheet.
- After they settle on one solution, have each group determine the materials they want to use under the set budget in their Helping Hands Worksheet.
Create & Test (20 minutes)

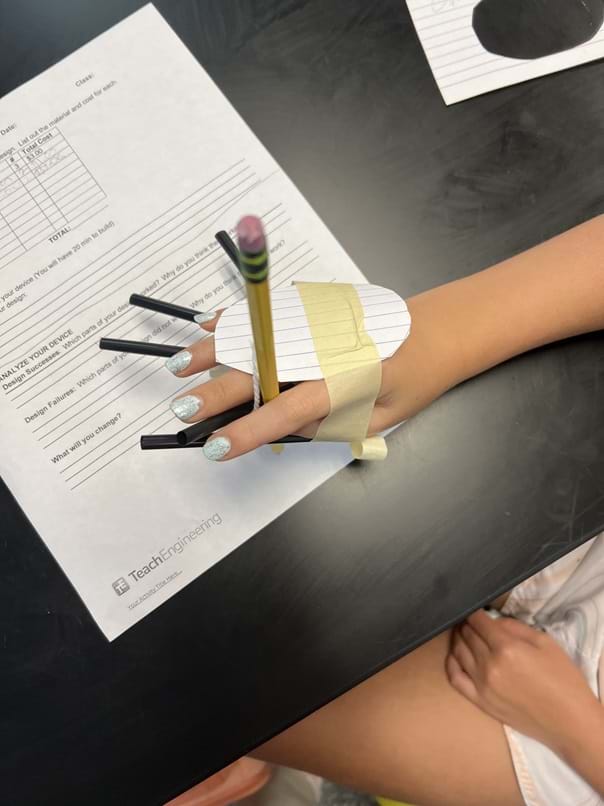

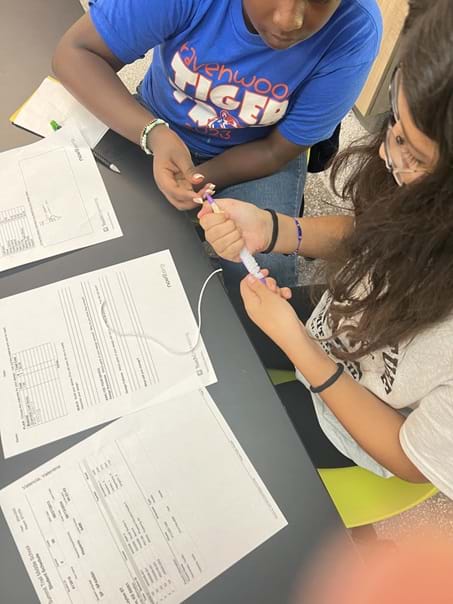

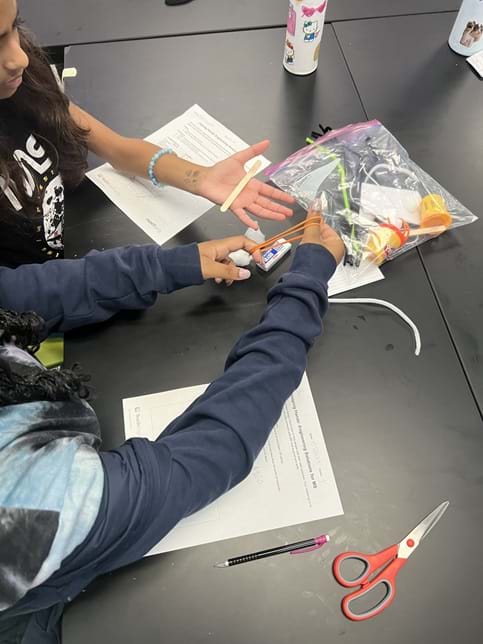

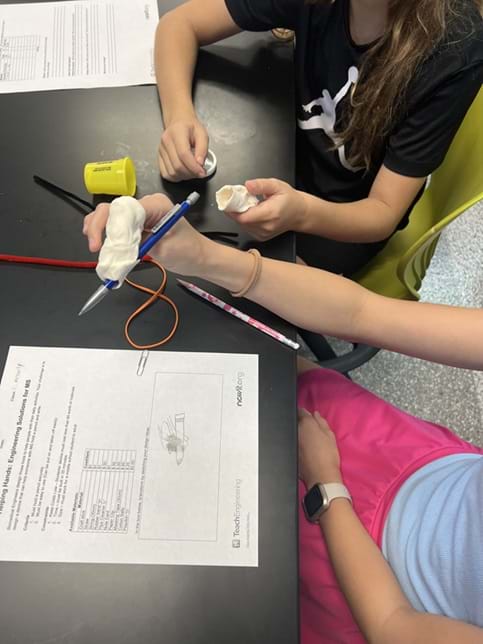

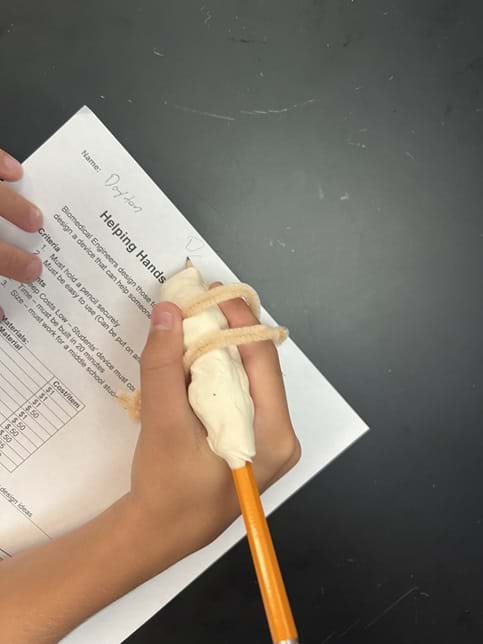

- Give students 20 minutes to build and test their designs.
- Have groups test their design by trying to write with the device.
- Once they have their final design, have them describe their device in their Helping Hands Worksheet.
Evaluate, Redesign and Test (20 minutes)
- Give students 20 minutes to evaluate, design, and retest.
- Have students determine what worked well on their design and what needs improvement.
- Have students write their responses on their Helping Hands Worksheet.
- Allow students to make necessary modifications to their design and then retest their modified design.
Presentation (10 minutes)
- Have each group present their final prototypes to the entire class or in small groups, depending on time. Assess each presentation and device based on the Helping Hands Rubric.
- Summarize the activity by discussing the design process and the importance of iteration and testing in engineering.
Vocabulary/Definitions
assistive device: A product that helps someone perform a function that could not be done without that piece of technology.
biomedical engineering: The application of engineering principles and techniques to problems in medicine and biology.
demyelination: The loss of myelin from the nerve sheaths.
engineering design process: A series of steps used by engineering teams to guide them as they develop new solutions, products, or systems; the process is cyclical and iterative.
multiple sclerosis (MS): A disease that affects the brain and spinal cord, which are important parts of the nervous system. In MS, the protective covering around the nerves, called myelin, gets damaged; this makes it harder for the nerves to send messages to the rest of the body.
myelin: A soft, white, fatty material in the membrane of Schwann cells and certain neuroglial cells.
myelin sheath: A wrapping of myelin around certain nerve axons, serving as an electrical insulator that speeds nerve impulses to muscles and other effectors.
neuron: A specialized, impulse-conducting cell that is the functional unit of the nervous system, consisting of the cell body and its processes, the axon, and dendrites.
Assessment
Pre-Activity Assessment
During the introduction, be sure to review myelin by asking students how myelin helps nerve signals travel. (Possible answers: Myelin acts like insulation around nerve fibers, helping electrical signals travel quickly and efficiently. It helps protect the nerve fibers from damage. Myelin allows for fast and precise communication between different parts of the body. It speeds up transmission.)
Activity Embedded (Formative) Assessment
Worksheet (In pairs/groups): Have students complete the Helping Hands Worksheet as they work through the activity.
Post-Activity (Summative) Assessment
Use the Helping Hands Rubric to assess the students on their device and collaboration for this activity.
Activity Extensions
- Advanced Design Challenge: Have students design a more complex assistive device for other tasks affected by fine motor skill loss, such as buttoning a shirt or using utensils.
- Guest Speaker: Invite a healthcare professional or biomedical engineer to talk about their work with MS patients and assistive technology.
- Math Integration: Incorporate a math activity where students calculate the cost of materials and budget for creating multiple devices, practicing real-world math skills.
