Visit [www.teachengineering.org/lessons/view/van_nanoparticles_lesson01] to print or download.Introduction/Motivation

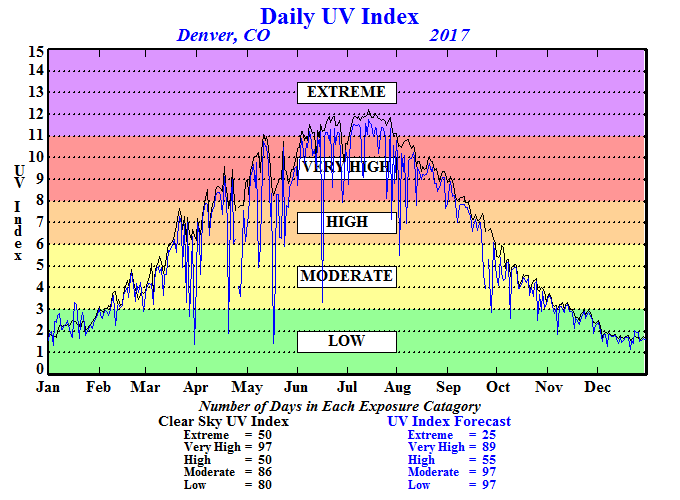

You have just been given the following grand challenge: "Congratulations! You have just won the Nobel Prize in chemistry for your work with nanoparticles! You have now decided to fulfill your lifelong dream of learning how to surf by using your 1.4 million dollar monetary prize to move to Einstein Cove, Australia. However, upon researching your move, you come across the ultraviolet index information for Australia. What does this mean in terms of your potential skin cancer risk as a surfing enthusiast in Einstein Cove? How could you use your expertise in nanoparticles to treat, detect and protect against skin cancer?"
Biomedical engineers are increasingly looking into nanoparticles to find ways to diagnosis and treat skin cancer because nanoparticles are particularly good imaging agents. What are nanoparticles? And how could they be used to treat, detect and protect against skin cancer? What exactly is skin cancer? And what is the cause? These are just a few of the questions we investigate during the next few days in our lesson on using nanoparticles to detect, treat and protect against skin cancer.
Lesson Background and Concepts for Teachers
Legacy Cycle Steps for this Lesson
(Generate Ideas) Ask students the following research question: What is electromagnetic radiation? In class, have students write journal entries to answer the following questions:
- What are your initial ideas about how this question can be answered?
- What do you already know about UV light and nanoparticles?
(Multiple Perspectives) As a class, have students share ideas from their journals. Record their ideas on the board.
(Research and Revise) Deliver to students the lecture information on the electromagnetic spectrum, ultraviolet radiation (including UVC, UVB, and UVA rays), photon energy, and the relationship between, frequency, wavelength and energy.
(Test Your Mettle) Assign students to complete the Energy Homework questions and problems as homework or classwork.
(Go Public) Upon returning to class or completing the problem set, have students work the problems on the classroom board and discuss the answers if all students are not in agreement.
Following the lesson, students can conduct the hands-on Flame Test: Red, Green, Blue, Violet? activity to expand their understanding by gathering data that helps them identify the chemical makeup of a "mystery solution" based on the visible color the solution burns.
Lecture Information

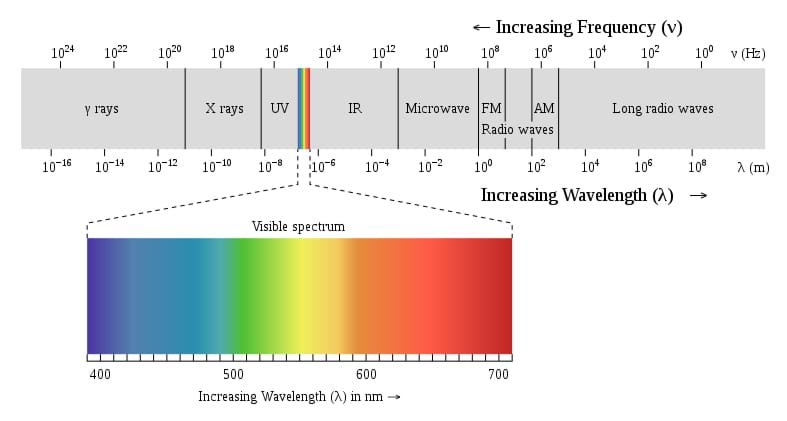

Ultraviolet light is a form of electromagnetic radiation. Electromagnetic radiation is a form of radiant energy that exhibits wave-like behavior and travels through space at the speed of light in a vacuum. The entire range of frequencies and wavelengths that make up all forms of electromagnetic radiation, including radio waves, gamma rays and ultraviolet waves is called the electromagnetic spectrum.
The relationship between wave frequency, wavelength and energy is described by the equation c = λν, where c = wave speed. Wave speed in a vacuum is 3.00 108 m/s. Wavelength is the shortest distance between points where the wave pattern repeats itself, such as from crest to crest or trough to trough and is represented by the symbol λ (lambda). Wave frequency is the number of complete oscillations that a wave makes each second; it is measured in hertz and is represented by the symbol ν. Thus, the speed of the wave is equal to frequency wavelength of the wave.
In 1900, Max Planck, a German physicist, postulated that energy is quantized and therefore must occur in discrete units of size, hν; thus, ΔE = hν. These units were called quanta of energy. Albert Einstein furthered this postulate through his Nobel Prize-winning analysis of the photoelectric effect. Einstein stated that electromagnetic radiation is also quantized. These discrete packets of electromagnetic radiation were called photons. Energy of a photon of electromagnetic energy is given by Ephoton = hν.
Combining the two equations, c = λν and Ephoton = hν, we see that Ephoton = hc/λ.
Through innovations of the combined work of Arthur Crompton, Planck and Einstein, it became evident that electromagnetic radiation has both wavelike and particle-like properties; this is now referred to as the dual nature of light. Further, Louis DeBroglie proposed that the same must also be true for matter. DeBroglie postulated that one could calculate the wavelength of a particle such as an electron given the mass and speed of the particle, through the equation m = h/λc.
The sun emits three forms of ultraviolet radiation:
- UVA, with a wavelength range of 315-390 nanometers
- UVB, with a wavelength range of 280-315 nanometers
- UVC, with a wavelength range of 100-280 nanometers

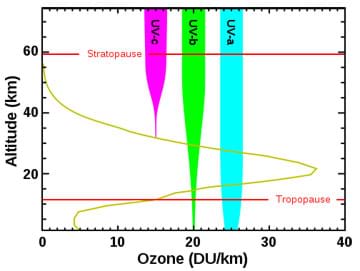

A large percentage—98%—of UV radiation is blocked by the ozone layer in regions with sufficient ozone. All UVC and most UVB rays are stopped by the ozone layer naturally. In turn, 90% of the UV radiation that reaches the Earth's surface is UVA. Both UVA and UVB can cause significant health risks (which will be investigated in the next lesson). Before designing any protective products, engineers must first understand the nature of ultraviolet light to understand how these rays cause skin and cancer.
Associated Activities
- Flame Test: Red, Green, Blue, Violet? - Students perform a flame test, gathering data that helps them identify the chemical makeup of a "mystery solution" based on the visible color the solution burns. This activity gives students practice in preparing specific molarity solutions and helps them make connections between colors, light wavelengths, and energy frequencies, which are dependent upon the molecules in the solutions.
Vocabulary/Definitions
electromagnetic radiation: Radiant energy that exhibits wavelike behavior and travels through space at the speed of light in a vacuum.

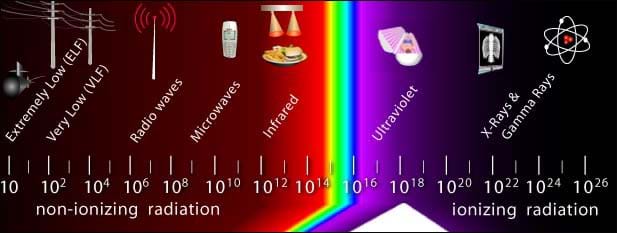

electromagnetic spectrum: The entire range of frequencies and wavelengths that make up all forms of electromagnetic radiation, including radio waves and gamma rays.
emission spectrum: A plot of the intensity of light emitted from a hot body over a range of frequencies.
energy: The capacity to do work or cause the flow of heat.
excited state: The state of an atom with excess energy.
frequency: The number of complete oscillations that a wave makes each second; measured in hertz.
ground state: The lowest possible energy state of an atom.
photoelectric effect: The emission of electrons by certain metals that is produced when they are exposed to electromagnetic radiation.
photon: A discrete, quantized bundle of radiation that travels at the speed of light, has zero mass, and has energy and momentum; a particle of electromagnetic radiation.
Planck constant: 6.626 X 10 to the power of negative 34 J S
quantized: Occurring in discrete units of size, in the case of radiant hv.
quantum: One quantized packet of energy.
wavelength: The shortest distance between points where the wave pattern repeats itself, such as from crest to crest or trough to trough.
Assessment
Pre-Lesson Assessment
Review: Review with students the concepts about waves, wave properties and vocabulary, such as wavelength, frequency, amplitude, crest and trough. Ask them to name as many types of electromagnetic radiation as possible. (Example answers: Visible light, ultraviolet, infrared, microwaves, radio waves and gamma rays.) Show them a chart of the electromagnetic spectrum.
Post-Introduction Assessment
Research Challenge: Pose this research question to students: What is electromagnetic radiation? Then have students write journal entries to answer the following questions. As students share their answers with the class, write their ideas on the classroom board and use their answers to gauge their comprehension.
- What are your initial ideas about how this question can be answered?
- What do you already know about UV light and nanoparticles?
Lesson Summary Assessment
Brainstorming: Ask students to brainstorm in small groups the connection between electromagnetic radiation and the unit's Grand Challenge Question, as applies to skin cancer, including the potential risks and the use of nanoparticles to protect against skin cancer. Have them record their ideas about how what they learned in the lesson's lecture information could be useful in addressing the Grand Challenge Question.
Homework
Energy Homework: At lesson end, assign students to complete the 10-question Energy Homework, which requires them to use the equations and other information presented in the lesson to answer the questions and complete the problems. Refer to the Energy Homework Answer Key. Have students work the problems on the classroom board and discuss the answers if all students are not in agreement. Review students' individual answers to evaluate their depth of comprehension.
