Hands-on Activity Living Walls:
Choosing a Location with Arduino

Learning Objectives

After this activity, students should be able to:

• Develop an Arduino sensing toolkit to gather data about their environment.
• Compare data gathered to national standards/expectations for indoor air quality.
• Construct an argument based on their data to support the location of a living wall to fix an issue that they see in their thermal comfort or indoor air quality.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

International Technology and Engineering Educators Association - Technology

State Standards

Materials List

Each group needs:

• laptop computer
• Arduino Uno microcontroller
• CO₂ Sensor (K30 CO₂Sensor)
• humidity/ temperature sensor
• LCD screen
• breadboard
• wires
• 9v battery
• Proposal and Data Collection Worksheet
• (optional) a collection of plants, a greenhouse, or a living wall inside the school

For the entire class to share:

• graph paper

Worksheets and Attachments

Pre-Req Knowledge

• Students should have a basic understanding of heat and how it is transferred.
• Students should have some background on how circuits work and have built one before. Following a fritzing diagram will improve their chances of success. Having used an Arduino IDE to load programs will help lots.
• Students should have some background in photosynthesis. Students will need to know how to calculate averages.

Introduction/Motivation

In our modern world, almost all commercial buildings have a heating system or a cooling system. What is the purpose? Consider a school environment: If we want the kids to be comfortable what temperature do we set it? Do humans have a specific range of temperature that they enjoy? [Consider answers for all the above questions.]

Let’s say I set the thermostat to what I feel is a comfortable temperature. But then 20 people come into the room with me. What is that going to do to the room? So how do we contrast that increase of temperature? Most large buildings have a system that monitors temperature, humidity, and CO₂ levels. Why those three things? Does humidity affect the way temperature feels? What does CO₂ do? What do you think would happen if we placed plants—also known as a living wall or a vertical garden—in a room, hallway, or open space inside a building? Can we make predictions or hypothesize would we expect to happen based on things you already know?


What if we could monitor or look at these levels of CO₂, temperature, and humidity in the room at any given time? Would that data give us the information necessary to help us determine where we can construct put a living wall? We know that a living wall will lower CO₂ in a room. So, what room should we put it in? What data do we have to know that would be the best location? Let’s learn about how to design a sensor that will allow us to explore this idea and get started!

Procedure

Background

The HVAC system of most buildings looks at a variety of things to help stabilize the environment. Based on industry standards for CO₂, temperature, and relative humidity levels inside a building, we can monitor those same variables using an Arduino. By looking at those three variables we can figure out the best location for a plant wall to be implemented.

Before the Activity

• Gather materials and make copies of the Proposal and Data Collection Worksheet.
• Open the Living Wall Introduction PowerPoint and become familiar with what is there. (Note: this is a suggestion of how to cover and introduce the topic to the students, and it can easily be manipulated to better suit different styles of teaching.)
• (optional) Print copies of the Fritzing diagram.
• (optional) Preload the code onto all the Arduino.

With the Students

Day 1

1. Using the Living Wall Introduction PowerPoint introduce the topic and the engineering design process and challenge to the students.

1. Talk about what is currently used in HVAC systems for human comfort (slides 1-5).
2. Talk about what plants do: photosynthesis, and evapotranspiration.
3. Introduce a way to monitor variables using the Arduino sensing toolkit.

2. Divide class into groups of 2-3 students.
3. Give each group of students the necessary supplies to build their Arduino monitoring device.

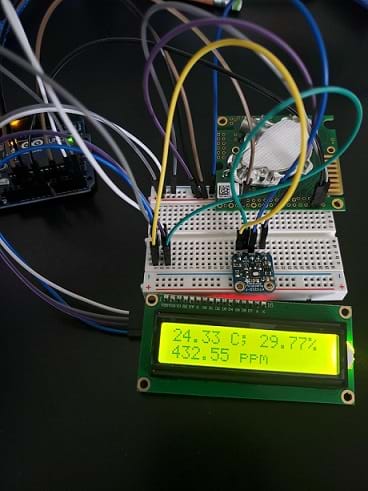

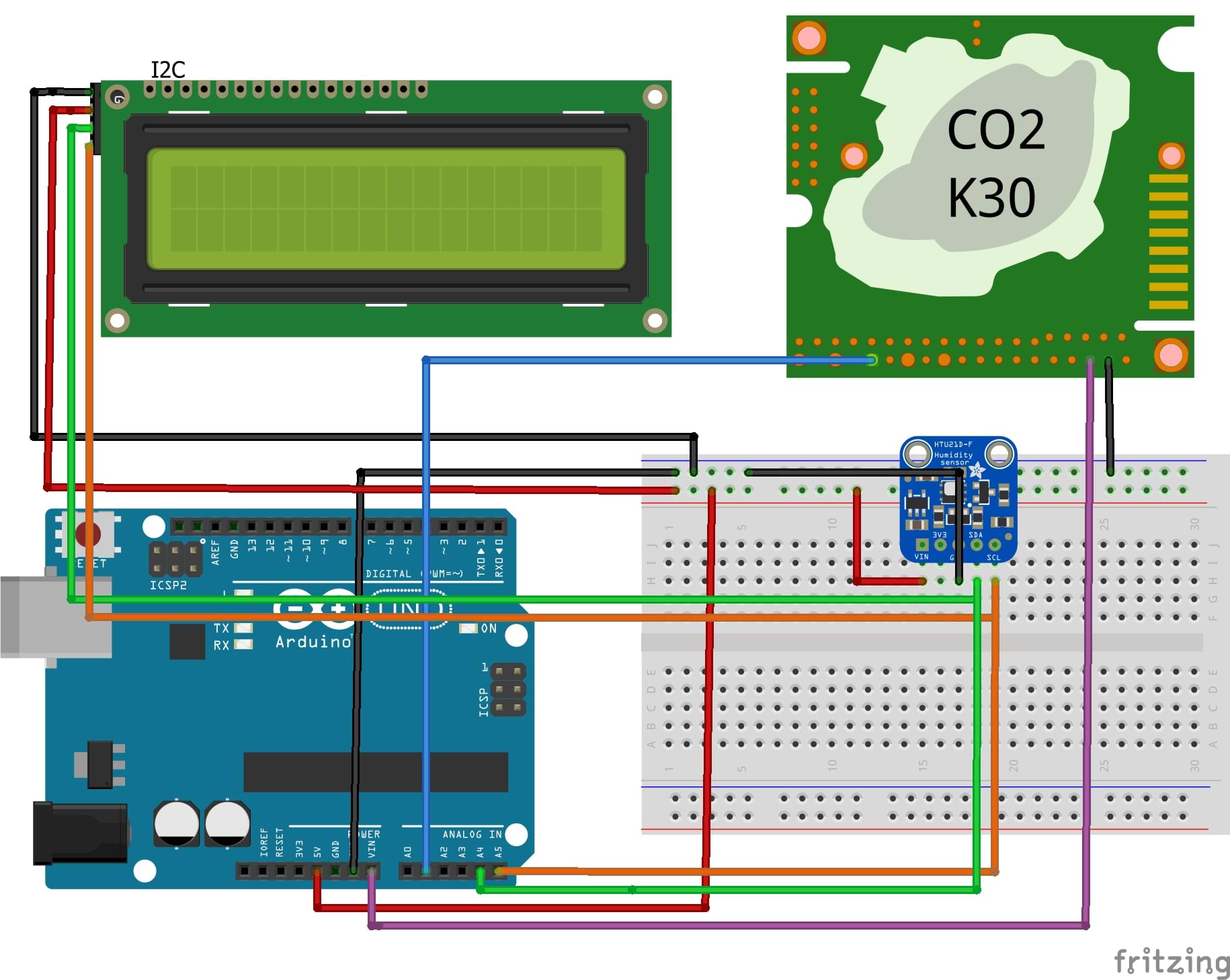

4. Show the Fritzing diagram for the students to follow.

1. Give students plenty of time to follow the diagram.
2. Have students upload the code onto the Arduino using the IDE software. (Note: You can have students copy the code in themselves using the Living Wall Sensors Code.)
3. Note: this CO₂ sensor needs to be plugged into a wall for accurate readings.
4. Allow students to blow on the sensor and to watch it change.

5. If students finish early, give them time to brainstorm areas of the school that they think could use a living wall.

Day 2

1. Using the Living Wall Introduction PowerPoint start the day by asking for their ideas of where they want to go. Brainstorm ideas with them as a class until each group has a different location. Remind students that they want to put the living wall somewhere where it would be the most helpful in reducing the amount of CO₂, increasing the aesthetics of the school, or affecting the humidity of a room.

1. Have students use the Proposal and Data Collection Worksheet to help gather data.
2. Students are responsible for finding an area in the school for the living wall.
3. Students need to observe things about that area. For example: measure how large of an area it is, what type of light it receives and any other pertinent information.
4. Based on their observations, have students write a proposal as to why they think the living wall would be good in that location.
5. Have students use their Arduino monitoring system to go and collect data from that location. (It is recommended that students collect at least 30 data points at different times of the day.)

2. Ask students to calculate the average temperature, humidity, and CO₂ for that specific location.
3. All students will need to show their data to each other by writing it on the whiteboard table or in the PowerPoint itself.

Day 3

1. Using the Living Wall Introduction PowerPoint have a discussion with the students about the class data. What trends do they see? Where are the differences?

1. (optional) Take the student gathered data from the day before and create a chart/graph comparing the data.

2. Using the data from the day before students will need to write an argument about where they think the grow wall should go using the data that has been collected, as well as observations they have made about the location (e.g., amount of light in the area).

Vocabulary/Definitions

evapotranspiration: The process by which water is transferred from the land to the atmosphere by evaporation from the soil and other surfaces and by transpiration from plants.

HVAC: An acronym for heating, ventilation, and air conditioning.

photosynthesis: The process by which green plants and some other organisms use sunlight to synthesize foods from carbon dioxide and water. Photosynthesis in plants generally involves the green pigment chlorophyll and generates oxygen as a byproduct.

Assessment

Pre-Activity Assessment

Brainstorming: This is the proposal. This is done before students test with the Arduino and gather data for their specific area.

Activity Embedded (Formative) Assessment

Hypothesis: This is done with the discussions after each student group has written their data on the board. There will be maybe all the same or some that are much different. Please talk with the students about what their data MEANS.

Post-Activity (Summative) Assessment

Problem solving: This is the final paper that students turn in. Their argument must be supported by the data collected.

Making Sense Assessment: Have students reflect on the science concepts they explored and/or the science and engineering skills they used by completing the Making Sense Assessment.

Safety Issues

• We are working with Arduinos which have small metal parts; students should be careful using the wiring and be mindful of circuit board edges.

Activity Extensions

I would suggest to my students that maybe time of day is relative to their data. So could we test at different points in the day?  Once the proposal is written students may want to see if their proposed location would make a difference. Since the wall is movable, place the wall in the various locations. Students may collect data in the locations and compare it to their preliminary data gathered for their proposals.

Activity Scaling

• For lower grades:
• Download the code onto the Arduinos prior to their use.
• Build Arduino LCD screen portion and only have the kids build the sensors on to the Arduino.
• Give students suggested areas as to where to test.
• For upper grades:
• Have students calculate standard deviation for their data.
• Place a living plant in the area and have them test near the plant to see if there is any difference.
• For more advanced students:
• Have students add a light sensor to the Arduino and gather light data as well.
• Calculate the standard deviation for all their averages and the class data.
