Hands-on Activity Testing the Effects of an Earthquake on the Structural Integrity of a Building

Learning Objectives

After this activity, students should be able to:

• Describe the components of the Engineering Design Process.
• Describe the effects of both vertical stress and sheer stress on a structure.
• Work collaboratively to create a structure within specified design constraints.
• Explain trade-offs in the design process using a cost-benefit analysis.
• Communicate the outcome of the design process to all parties involved.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

Materials List

Each group needs:

• spaghetti noodles (50)
• toothpicks (20)
• flexible straws (10)
• marshmallows (20)
• rubber bands (20) (can be used in construction, but must be removed before test)
• glue gun (2) and glue sticks (5)
• wax paper (to rest glue gun on when not in use)
• ruler
• scissors
• access to a camera or camera phone
• Pre-Build Worksheet (1 per student)
• Constructing Your Model Worksheet (1 per student)
• Bay Area Developers PowerPoint Template (1 per group)

For the entire class to share:

• shake table (see building instructions in Before the Activity)
• pieces of wood larger than 15 x 15 cm (2 pieces of identical size)
• bouncy balls (4 of identical size)
• rubber bands (2 that can fit around the pieces of wood)
• 2.5 lb. (1134 g) weight
• balance or scale
• stopwatch or other time-keeping device
• removeable top approximately 24 x 24 cm and 2 cm high
• masking tape or painter’s tape
• Optional: frame 24 x 24 cm and 2 cm high
• Optional: clamps (2)

Worksheets and Attachments

Pre-Req Knowledge

• Basic understanding of types of soil and relative strengths of different soils.
• Understanding of cause-and-effect relationships in motion.
• Use of cost-benefit analysis in decision making.

Introduction/Motivation

(Hand out the Introduction Worksheet. Lead students through the worksheet and have them discuss their responses as a class.)

Today, you will work as a group of civil engineers. Each group will belong to a firm that has just been tasked with designing a three-story building in San Francisco for the Bay Area Developers. San Francisco is near the San Andreas fault, which means each firm will have to account for earthquakes in the construction of their model. Each group’s job is to design, build, and test a model of a three-story building in an earthquake zone.

After you construct your buildings, they will be placed on a shake table. A wooden cover with a weight (2.5 lbs.) will be placed on top to test whether it stays standing. Then we will shake the building on the table, and you will measure the time it lasts before it breaks during an earthquake. Finally, each group will put together a presentation with their design, cost analysis, and the shake table test results. Each group will compete against the other groups in class to present to the Bay Area Developers in hopes of winning the bid.

Procedure

Background

During an earthquake, seismic waves cause the ground to shake and buildings to vibrate. If the frequency vibration matches the natural frequency of the building, resonance may cause severe damage to the building. This is because each additional seismic wave from the earthquake amplifies the building’s vibration and causes it to vibrate more and more with each wave, resulting in significant damage, even if the strength of the earthquake is relatively small. Engineers work with geologists and seismologists to predict the frequency of earthquake motions at building sites to prevent resonance-induced collapses. They consider factors such as soil type and fault type, as well as data from previous quakes. Engineers have also devised ways to absorb shocks and limit deformation using innovative systems such as base isolation and tuned mass damper systems.

Engineers utilize the Engineering Design Process to solve problems such as how to design safe buildings in earthquake-prone areas. The process includes Ask: Identify the needs and constraints; Research the problem; Imagine: Develop possible solutions; Plan: Select a promising solution; Create: Build a prototype; Test and evaluate prototype; and Improve: Redesign as needed. In this activity, students use the engineering design process as they design a model building to withstand a simulated earthquake. Like engineers, students are prompted to consider the budget of their buildings and have the opportunity to iterate their designs.

Before the Activity

• Construct the shake table using two pieces of wood, four bouncy balls, and two rubber bands.
• Place four bouncy balls in between the pieces of wood.
• Wrap the rubber bands around the wood pieces to secure the shake table.
• For reference, see this 4:28-minute video “Earthquake Shake Table Experiment” or instructions on Building a Shake Table.

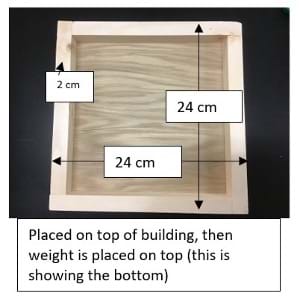

• Construct the removeable top, which will be placed on top of the buildings during testing to hold the weight in place.
• Use pieces of wood (or other material) to create a frame 24 x 24 cm that is 2 cm high.
• Attach a thin piece of wood 24 x 24 cm to the top of the frame.



• Print worksheets and gather materials.
• For Day 5, provide students with access to the Bay Area Developers PowerPoint Template through Google Classroom or another file-sharing system.
• Optional: For Day 6, invite a civil engineer to view student presentations and choose the winning bid.

With the Students

Day 1

1.  After the introduction, divide the class into groups of 3 or 4 students.
2. Give students the Pre-Build Worksheet. Using what they learned in the introductory activity, have students create a preliminary design.
3. Tell students that they will have the following constraints on their build, along with a limited supply of materials:

• Footprint must be between 15 x 15 cm.
• Height must be between 36-50 cm.
• Each story must be between 8-12 cm.
• Must hold a weight of 2.5 lbs. (1134 g).
• Mass of the building cannot exceed 300 g.

4. Ensure students know that to survive the earthquake test, the building must not collapse for 10 seconds after the earthquake begins.

Days 2-3 (+optional extra day)

1. Hand out the Constructing Your Model Worksheet to each student.
2. Within the group, assign students the following jobs:

• photographer (takes pictures of the build)
• cost analyst (keeps a running total of all materials used)
• timekeeper (keeps groups on track for each building time)
• Everyone will be builders!

4. Remind students that rubber bands can be used to construct their building, but they must be removed before the mass is taken.
5. Give students 2-3 days to complete their buildings.



Day 4

1. After the groups have finished building, have them measure the mass (cannot go over 300 g) and record it on their Constructing Your Model Worksheet.

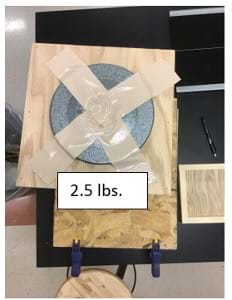

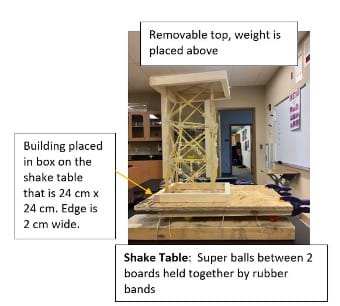

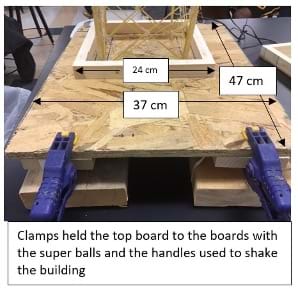

2. Have students then place the building on the shake table (optional: place it within the 24 x 24 cm frame), place the removeable top on top of their building, and add a 2.5 lbs. weight on their building. Have students secure the weight to the removeable top with tape if needed. (Optional: Attach two clamps to the top piece of wood of the shake table and use them as handles while simulating an earthquake.)









3. Have students use a stopwatch to record the time it takes for the building to fail on the shake table. The building must remain standing for 10 seconds after the earthquake begins. If not, the students should fix mistakes to make sure it stands.
4. Have students redesign their building to explain how it could be stronger, based on where the building failed. If the building did not fail, challenge students to redesign their building to ensure more than 10 seconds of an earthquake or a stronger earthquake.

Day 5

1. Finally, tell students they will put together a PowerPoint presentation to the “Bay Area Developers” in hopes of winning the bid. Have students access the Bay Area Developers PowerPoint Template to share with their partners. This is only a template, and students should work to make it unique to their firm.
2. The bid they put together should be professional and reflect their team of engineers to show that their design was strongest and most cost-effective. Encourage students to look at the Conclusion and Rubric on the Constructing Your Model Worksheet for guidance on what to include in their presentations.

Day 6

1. Have each group present their findings to the class. The teacher will determine the winning bid. Optional: invite a civil engineer to the class to determine the winning bid.

Vocabulary/Definitions

Modified Mercalli Intensity Scale: Measures the intensity of shaking produced by an earthquake.

primary (P) earthquake waves: Compressional waves that travel through gas, liquids, and solids and move parallel to the direction of the earthquake. This is the fastest type of wave.

Richter scale: Measures the strength of an earthquake.

secondary (S) earthquake waves: Transverse waves that travel only through solids perpendicular to the direction of the earthquake.

seismograph: Machine that detects vibrations in the ground during and after an earthquake.

surface (L) earthquake waves: Waves that move the slowest along the surface but cause the most damage.

Assessment

Pre-Activity Assessment

Civil Engineering Brainstorm: With their shoulder partner, students should discuss what a person with a civil engineering degree would do. What jobs would this type of engineer work have? As a class, record ideas on the board. They should see that a civil engineering degree can be used in a wide variety of jobs with many different aspects.

Activity Embedded (Formative) Assessment

Building Design: Students will work together to design and draw their building on paper. Their buildings need a footprint of 15 cm by 15 cm with a height of 36-50 cm. They will have to include how they will increase their stability throughout the build. They will use this as their blueprint for their spaghetti buildings. After they have their sketches done, they will answer the following questions on the Pre-Build Worksheet: What shape do you think will add the most stability for the building to withstand an earthquake? Where on the building do you think needs the most stability? How are you going to add that stability? Check in with students throughout this process and ask groups to explain their answers to the worksheet questions.

Post-Activity (Summative) Assessment

Building Presentation: Students are working as civil engineers in groups of 3 or 4 to design and build a model of a building that will withstand an earthquake. Students will follow the engineering design process. They will take pictures and careful notes that they will assemble into a well-thought-out, concise presentation on how they accomplished the task. Students will present their findings in a presentation to the “Bay Area Builders” in hopes of winning the bid. They will be graded with the rubric found on the Constructing Your Model Worksheet.

Troubleshooting Tips

Give students limited resources. Students will just put as much glue as they can on their project if they have an unlimited supply.

Use caution when working with the hot glue gun. Keep guns on wax paper, so the glue doesn’t get all over the tables.

Activity Extensions

Students could contact a civil engineer from an earthquake-prone area (e.g., San Francisco) and have a video chat for a question-and-answer session before or after they build.

Activity Scaling

For lower grades, students could be given more ideas for what makes a building more stable to help with their design (e.g., a diaphragm or moment-resisting frames to help reinforce the building structure).

To go further, students could use an app on their phones or tablets (e.g., Vibration Meter) to measure the intensity of the earthquake waves on the building by using the gyroscope in their phone/tablet to measure the earthquake size and then analyze the waves that the shake table generated.

Additional Multimedia Support

• There are many apps for bridge building. Students could use one of the apps to practice constructing a bridge and use some of those principles on their spaghetti building.
