Hands-on Activity Model Greenhouses

Learning Objectives

After this activity, students should be able to:

• List the benefits (cost saving, efficiency) of using a greenhouse.
• Explain the greenhouse effect in depth.
• Provide an in-depth explanation of the greenhouse effect.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS: Next Generation Science Standards - Science

Common Core State Standards - Math

International Technology and Engineering Educators Association - Technology

State Standards

Materials List

Each group needs:

• 6 acrylic or Plexiglas squares, approximately 10 to 12 inches (25 to 30-cm ) per side
• hot glue gun and glue sticks
• soil and plant
• thermometer
• clear, wide strapping tape
• Greenhouse Design & Testing Worksheet
• (optional) structural frame made of wood, metal or plastic

For the entire class to share:

• saws, to cut acrylic or Plexiglas

Worksheets and Attachments

Pre-Req Knowledge

A basic understanding of the properties of light, including the visible spectrum, reflection and refraction of light. Students should concurrently be taking Algebra 1 in order to complete the worksheet calculations.

Introduction/Motivation

Have you ever noticed that often, after entering a car that has been in the sun all day, the interior is very warm, and may even be uncomfortably hot. This is not just due to hot weather; it happens because the design of the car lets heat enter, but not escape. This situation is not to be confused with the greenhouse effect. Although the situations are similar, the analogy is incorrect. The greenhouse effect refers to the process by which radiation from the sun is absorbed and reflected by the Earth's surface; some of the reflected radiation makes its way back through the atmosphere, and some is absorbed by greenhouse gas molecules that then re-emit the radiation in all directions in the atmosphere warming the surface of the Earth. As you have probably heard many times, the greenhouse effect has the potential to harm the Earth due to its contribution to global warming — but without it, our Earth would not be warm enough for us to live on!

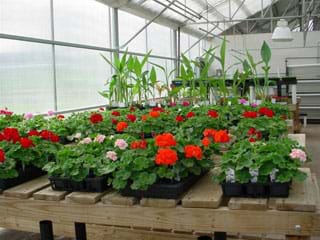

The process by which a greenhouse works is very different from the greenhouse effect. A greenhouse consists of a structure made entirely of a highly-transparent material, such as glass or plastic. The transparent material lets heat enter in the form of radiation, but does not let this heat escape (at least not very quickly). Heat is absorbed by inside objects and materials through radiation, and then released to the rest of the interior space through convection. The most important aspect of a greenhouse is that a person can control the interior environment, which is helpful when growing plants, especially in climates in which gardening would not normally be favorable.

So how can using a greenhouse improve the energy efficiency of a typical house? To start, it uses the light and heat emitted by the sun to create an exceptional environment for plant life. To do this with conventional heating and lighting would cost quite a lot. It also allows people to grow their own vegetables, herbs and flowers rather than buying them from a market. Designing a greenhouse as an addition to any home gives the inhabitants the opportunity to grow their own vegetables and plants at usually less cost than a grocery store. This saves energy in the form of electrical lights and heaters, as well as the energy that would be used to package the store-bought foods and transport them to the grocery store and to your home.

In the future, engineers may design and build enormous skyscraper greenhouses that are able to grow all kinds of fruits and vegetables, eliminating the need for goods to be transported into major cities. These would allow cities to become self sufficient and help to prevent widespread deforestation.

Today you will have the opprtunity to construct your own miniature greenhouses. By analyzing the global challenge, we will be able to specify criteria and constraints for the designs.

Procedure

Background

How Greenhouses Work: Greenhouses operate on four principals: radiation, transmittance, absorption and convection. Through this process, people are able to harvest energy from the sun and use it to maintain a warm and humid indoor environment conducive for plants to grow.

• Step 1: Radiation and Transmittance — Almost all the heat within a greenhouse comes directly from the sun through radiation. This energy is radiated through the Earth's atmosphere and transmitted through glass (or other transparent material) to the interior of the greenhouse.
• Step 2: Absorption — Once energy from the sun reaches the inside of the greenhouse, it must be absorbed. It helps to have a surface that absorbs almost all the energy that hits it (for example, something dark; soil works well). Whatever is inside the greenhouse continues to absorb this energy.
• Step 3: Convection — Once energy is absorbed within the greenhouse, heat is transferred throughout the space through convection. Cooler air falls to the bottom and gets heated up by the absorbing surface, and the process repeats. Because convection is the way the rest of the greenhouse gets heated, it is important to tightly seal the entire structure. Even opening the door for a short period of time can significantly reduce the indoor temperature.

The result of this process is an indoor environment much warmer than normally achievable without a greenhouse. If the temperature gets too high, it is easy to adjust it by opening a window or door to let out some heat.

A greenhouse design can be modified to account for specific capacitance or temperature needs. While changing the slope of the walls and roof does not change the amount of radiation entering, changing the dimensions does. A larger surface area leads to a larger amount of transmitted radiation. To harness all this radiation, a large absorptive surface is also required. For a higher-heat greenhouse, the floor surface area should be maximized while the volume of the overall greenhouse should be minimized (to allow for less space to be heated with the same amount of radiation). Of course, engineers must remain within certain constraints while designing them this way. For a larger capacity, a greenhouse simply needs more volume with a considerable amount of radiation still being transmitted. Greenhouses should be designed to optimally suit the specific needs of the user, so engineers must understand any necessary design modifications.

The Greenhouse Effect and Climate Change: The greenhouse effect is often confused with the process that occurs within an actual greenhouse. The greenhouse effect refers to a process in which reflected radiation from the Earth's surface is absorbed and re-emitted by greenhouse gases, rather than getting passed back into the atmosphere. It prevents the loss of heat by radiation, rather than convection, as in a typical greenhouse. It is important to distinguish between the two because they are easily confused.

Climate change refers to a significant change in average weather patterns over a long period of time in a particular region. It is attributed to several factors such as variations in solar intensity, and the Earth's orbit, and more recently, greenhouse gas emissions. Studying how the climate changes helps to distinguish between natural dynamic climate patterns and more recent forced climate patterns such as those caused by global warming. This kind of information is critical in analyzing the worldwide problem of global warming.

Vertical Farming: Vertical farming is a conceptual form of agriculture suitable for implementation in urban high-rises. These multi-story greenhouses would enable year-round crop production with exceptional benefits. Food for urban centers could be produced without the trouble of weather-related failure or transportation expenses. These buildings could make cities of the future completely self sufficient, reducing deforestation by returning farmland to nature. Currently the concept of vertical farming has not become a reality, but it is likely to revolutionize food production in the next 50 years.

Solar Geometry: It is important to consider the position of the sun and place the greenhouse on the land so that it receives sunlight during all times of the year. For this to happen, it must be completely exposed to the south (assuming its location is in the northern hemisphere). Placement should take into consideration any nearby trees or structures to the south of the greenhouse that may block the winter sun, which is much lower in the sky.

Before the Activity

• Gather materials.
• (optional) To save class time, pre-cut acrylic or Plexiglas squares.
• Make copies of the Greenhouse Design & Testing Worksheets, one per team.

With the Students

1. Divide the class into groups of two or three students each.
2. Provide each team with a worksheet.
3. Have students sketch and build their model greenhouses (see Part 1 on the worksheets). Limit greenhouse sizes to about 1 sq ft (a 10 x 10-inch [25 x 25-cm] base is a good starting point). See Figure 1 for an example sketch with dimensions noted.

4. Have students cut (or provide already-cut) pieces of acrylic or Plexiglas for the greenhouse bases, walls and roofs.
5. Have students glue pieces together to form the base and walls of the house (do not attach the roof yet). They may use some form of structural members between the acrylic pieces, as depicted in Figure 1.
6. Direct students to fill the bottom of the greenhouse with soil and a plant.
7. Instruct each group to insert a thermometer somewhere inside. If the thermometer does not fit inside, it can extend out of one of the joints, as long as the overall structure is sealed.
8. Next, have students attach the roof using tape as a temporary seal for one of the pieces (to allow access to the inside). Remind students to make sure any gaps are filled in and that the structure is air tight when they are ready for testing.
9. On a sunny day, bring the class outside to test their greenhouses. Follow Part 2 of the worksheet for testing procedures. As a control, also record the ambient outdoor temperatures (outside the greenhouse) at each time interval.
10. Once testing is complete, bring the class back inside to complete the graphing and analysis portions (Parts 3 and 4) of their worksheets.
11. Have students compare results with one another and discuss the overall results as a class.
12. Conclude by continuing the class discussion, incorporating questions provided in the Assessment section. If time permits (or as a homework assignment), ask students to re-engineer their model greenhouses, as described in the Assessment section.

Vocabulary/Definitions

absorbance: The ability of a medium to absorb radiation.

global warming: The recent trend of increasing world surface temperatures, thought to be caused by pollutants and their "entrapment" of heat.

greenhouse: A structure with transparent walls and roof used for the cultivation of plants under controlled conditions.

greenhouse effect: The warming of the Earth's surface due to greenhouse gases.

greenhouse gases: Gases that contribute to the greenhouse effect (mainly carbon dioxide, methane and water).

model: (noun) A representation of something for imitation, comparison or analysis, sometimes on a different scale. (verb) To simulate, make or construct something to help visualize or learn about something else (as a product, process or system) that is difficult to directly observed or experimented upon.

radiation: Energy that is radiated or transmitted in the form of rays, waves or particles.

transmittance: The amount of light that passes through an object.

Assessment

Pre-Activity Assessment

Question/Answer: Have students first discuss amongst themselves, and then discuss as a class.

• What kind of heat transfer does a greenhouse use to gain heat? How is it able to do this? (Answer: The greenhouse gains heat through solar radiation. It is able to do this because radiation does not require a medium and can easily be transmitted through transparent or nearly transparent materials [such as glass].)
• What kind of heat transfer does the greenhouse prevent (between the inside and outside)? How does this help the greenhouse operate? (Answer: The greenhouse prevents convection heat transfer between the indoor and outdoor air. This allows the indoor air to be heated up while keeping it from exchanging with the cooler outdoor air. Because the greenhouse is sealed up, it only loses heat through conduction.)

Activity Embedded Assessment

Worksheet: Have teams complete the Greenhouse Design & Testing Worksheet; review their answers to gauge their mastery of the subject.

Post-Activity Assessment

Re-Engineering: Ask students how they could improve their model greenhouse and have them sketch or test their ideas.

Concluding Discussion Question/Answer: Ask students and discuss as a class.

• Why is it important for engineers to understand the principles behind which a greenhouse operates? (Answer: An understanding of the way greenhouses work helps engineers design structures for optimal energy efficiency.)
• How does the inclusion of a greenhouse add to the energy efficiency of a house? (Answer: Including a greenhouse in the design of a house enables additional solar energy to be harnessed and used for anything from growing plants to space heating in the winter season. The addition of a greenhouse has the potential to save a great deal of money and energy in any household.)

Investigating Questions

What are some ways to use a greenhouse other than for gardening? (Possible answer: You could install a duct and fan system to pull warm air out of the greenhouse and heat your house during the winter [this would mean it would no longer work for gardening].)

Safety Issues

• Careful with the saws, hot glue guns and hot glue.

Troubleshooting Tips

If a model greenhouse has difficulty retaining heat, make sure it is completely sealed so no air can leak out.

Activity Extensions

Have students work as a class to design and build a larger greenhouse that can hold more plants.

Have teams evaluate their models considering solar geometry, thinking about the position of the sun in relation to their greenhouses. Where would they place their greenhouses next to a house? For example, a greenhouse is best placed in an area that receives sunlight during all times of the year.

Have students design and build a small scale "vertical farm" by working together to create a multi-story greenhouse. Learn more about this idea at The Vertical Farm Project, http://www.verticalfarm.com/.

Activity Scaling

• For younger students, offer the worksheet's final analysis math calculation as a challenge question.
